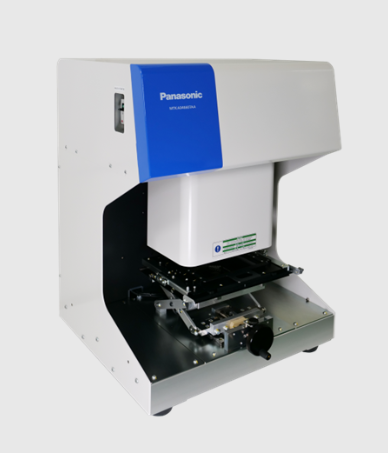

Offline Camera unit V2
Overview
Camera unit for creating parts data offline without machine downtime
- Zero SMT machine downtime when creating parts data by using SMT machine
- Uses the high-performance multi-recognition camera used in the latest SMT machines
- Our AI engine enabels skillless work in creating data for odd-shaped parts with complex shapes
-
Data can be created offline for all corresponding parts in Panasonic's current facilities
（Parts Size 0201~□135, Height 65 mm）
※Data Generation System NPM-DGS is required to use this product.
Customer's Issues
Takes time to create parts data
In recent years, the number of parts has diversified, and it is necessary to create accurate data in a short time.
Know-how is required to create parts data
Know-how is required to create accurate data when installing parts in the camera unit to create parts data, and it is necessary to train personnel with such know-how.

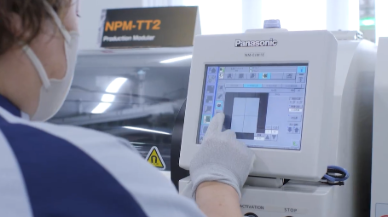

Machine shutdown for creating parts data
If you do not have an offline camera, it is necessary to use SMT machine for parts recognition teach, and the machine must be shut down for the work.
Features of Offline Camera unit V2
Shortened parts data creation time and zero machine downtime

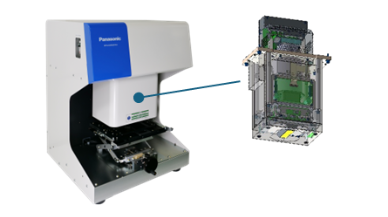

Equipped with the high-performance multi-recognition camera installed in the latest SMT machines, the time required to create parts data is significantly reduced (50% reduction compared to our previous product). No need to teach at the SMT machines after data is created.
*Can also be used to create data for our current facilities

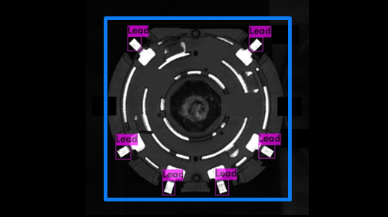

Automatic Electrode Recognition by AI
Even deformed parts with complicated shapes and irregular electrodes are automatically recognized by our AI engine with enhanced lead and shape detection. Realizes skillless work.

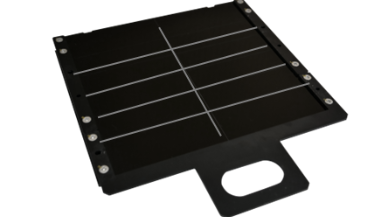

Improved parts installing base, expanded camera recognition range
A non-slip material installing base with clear line was adopted to make the part placement work easier during image acquisition. The camera recognition range was expanded to extract small parts and an automatic extraction function was also added.
Offline data can be created for all applicable parts ranges of Panasonic's current SMT machines
Custom Service
Line simulation
Tact simulation can be performed according to the mounted components and supply form.

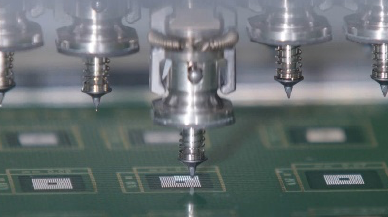

Mounting feasibility study (nozzle selection)
We propose the optimum nozzle for the mounted components

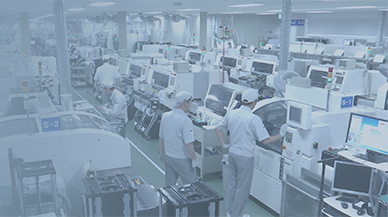

Maintenance solution
To ensure that our mounting machines can be reliably used by our customers for many years after delivery, we not only maintain the machines, but also continue to support our customers throughout the life span of the machines, reducing production loss, stabilizing operation and improving work efficiency.
