Odd-form Component Insertion Machine NPM-VF
Odd-form Component Insertion Machine NPM-VF
Supporting a wide variety of component sizes, packages, weights, and number of pins as an ideal solution for the automation of large and odd-form component insertion.
- Automation of odd-form components insertion process
- Supports SMT specifications
- Versatile and flexible support
- Various configurations of head tools and machine feeder configurations to adapt to different types of components
- Contributes to labor-saving and stable production with high productivity, flexibility and high quality manufacturing
Features and Benefits of “Odd-form Component Insertion Machine NPM-VF”

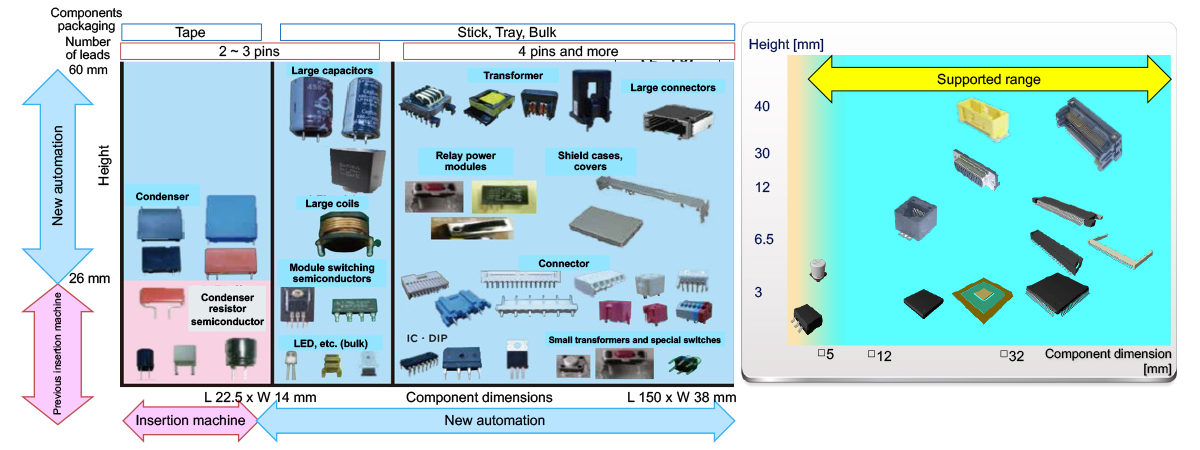

A single machine can handle odd-form components, radial/axial components and SMT placement
Components
- Component size Max. L 130 mm x W 35 mm
- Height Max. 60 mm
- Component weight Max. 200 g
Push force Max. 100 N

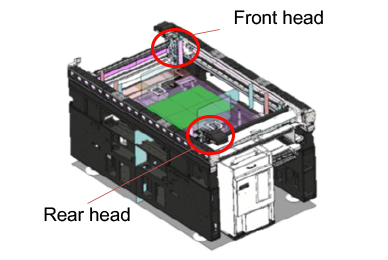

High-speed insertion with a maximum speed of 0.65 s is achieved by alternating insertion in a 2-beam (2-head) structure.
High-quality and stable production with image recognition and sensing technology developed
Head camera
Component camera
LED illumination is focused with a lens onto the lead only to recognize the position of the lead tip
Introduction Video of “Odd-form Component Insertion Machine NPM-VF”
Related products
Installed MES software
PanaCIM-EE Gen2
Support is provided for improvement in QCD in each task related to mounting, through centralized management of the entire mounting floor
Integrated line management system
iLNB
Optimization of the entire production line by “connecting” Panasonic machines, non-Panasonic machines, and higher-level systems
Automation for mounting processes
We propose factory automation that replaces manual work with automated equipment for mounting-related processes.
