Do you face any of these problems?
-
Need to reduce losses caused by excessive maintenance and maintenance delays
-
Need to stabilize solder position and volume to ensure printing quality
-
Need to print properly even when there is PCB warpage
-
Need to suppress defects caused by mask tension
-
Need to suppress quality failure due to mis-setting of parts when switching models
-
Need to maintain low-load/constant-load mounting quality, and record and visualize
Panasonic’s proposals for solving your problems
For more information, please download the document.

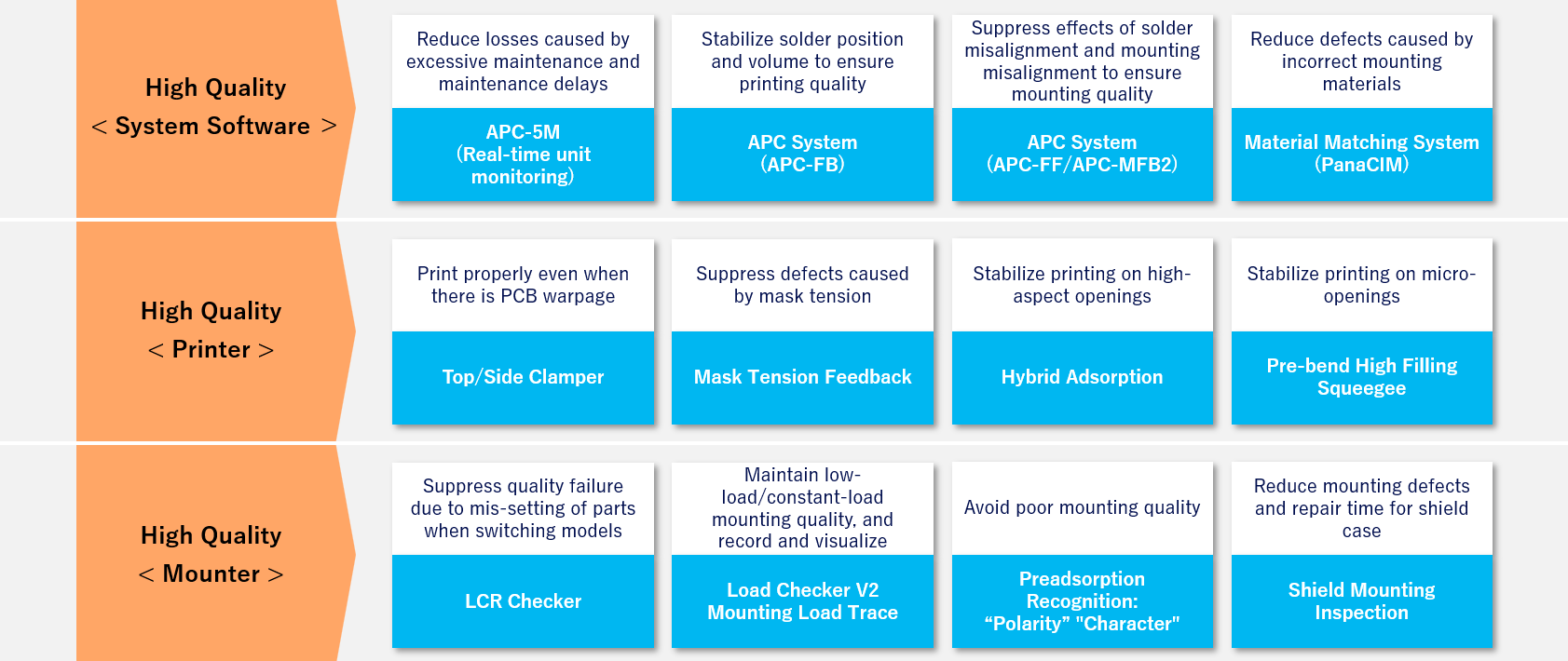

High Quality < System Software ＞
Reduce losses caused by excessive maintenance and maintenance delays
APC-5M (Real-time unit monitoring)
Real-time monitoring of the status of units to be maintained on mounting machines (printers and mounting machines) for each unit. By changing the value, deterioration of the status is detected for each unit, and proper maintenance is promoted.
Stabilize solder position and volume to ensure printing quality
APC System (APC-FB)
APC System automatically stabilizes print quality by statistically processing the solder measurement results from the Solder Pasete Inspection (SPI) machine and feeding them back to the printer to control the solder position and volume.
High Quality < Printer >
Print properly even when there is PCB warpage
Top/Side Clamper
In addition to the conventional side clamper, a top clamper is adopted to hold the PCB from the top. This strengthens the solution to PCB warpage and further improves print quality.
Suppress defects caused by mask tension
Mask Tension Feedback
Check the mask condition by measuring the mask tension when setting the mask. Notify that the mask has changed to the optimum plate separation operation or that the mask has been replaced.
High Quality < Mounter >
Suppress quality failure due to mis-setting of parts when switching models
LCR Checker
LCR checker automatically checks the constant number of installed parts when starting production, supplying parts, or switching models. This function contributes to the production of good quality products by preventing incorrect mounting due to incorrect feeding, abnormal parts, or incorrect labeling on reels.
Maintain low-load/constant-load mounting quality, and record and visualize
Load Checker V2/Mounted Load Trace
With the increase in the number of small parts, mounting load management becomes more important. By visualizing the nozzle sliding condition of the mounting head, performance maintenance and stable operation are realized. In addition, by recording the actual load at each mounting point, the quality is visualized and contributes to quality improvement.
For more information, please download the document.
For other solutions, please see the downloadable documents.
Please contact us for more information on products compatible with each function.
