Production Modular NPM-D3A
NPM-D3A
Main Features
- Dual placement method for fully independent placement
- Improved basic performance to realize high-speed, high-precision placement
- 5M* process control “APC-5M” for good production and stable operation
* 5M: The variable elements of a production site: huMan, Machine, Material, Method, and Measurement - Various skill-less and manpower-saving features including Auto Setting Feeder
Production Modular for High-Speed, High-Precision Mounting

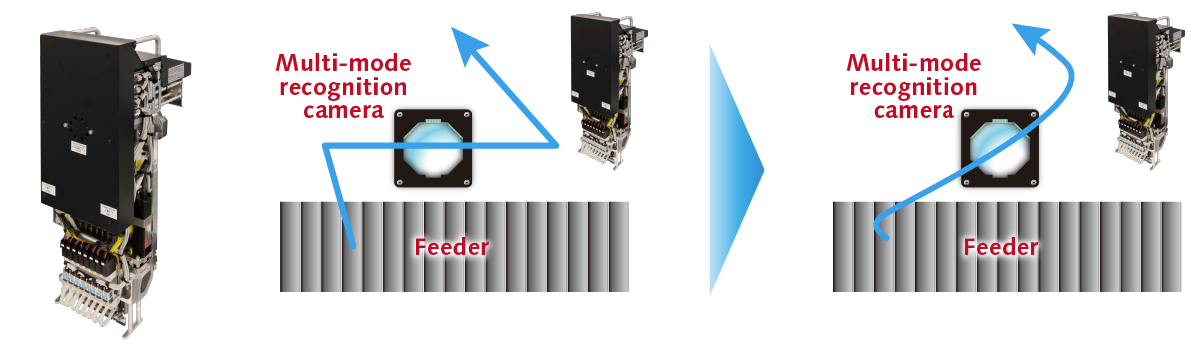

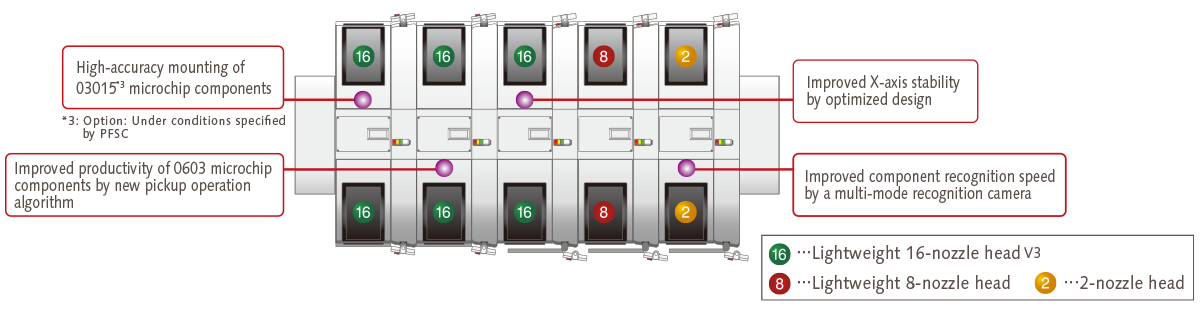

By adopting the lightweight 16 nozzle head V3A, multi-recognition camera and high-rigidity frame, this model simultaneously achieves improved area productivity and high-precision placement. The machine configuration is 2-head, the components supply section can be combined with 17-slot cart and tray feeder. It also supports a variety of automation and labor-saving functions, including the Auto Setting Feeder (ASF), which automates parts supply work, to flexibly meet the demands of each mounting site.
NPM-D3A
Strengths and Features
Supported components range
Max. speed and placement accuracy
Supported PCB size
Configuration example
Component supply units
Problems this product contributes to
High quality placement
High quality and high-accuracy placement even when small components such as in the device industry.
Maximize O.E.E by minimizing various losses
Minimizing various losses at production sites, maximizes O.E.E (Overall Equipment Effectiveness), and improves productivity.
Enhance skill-less and labor-saving
Reducing human-dependent work, which is one of the causes of loss and quality degradation, and reducing dependence on specific workers by making them skill-less.
High quality placement
Prevents mounting defects due to component setting errors
LCR checker (built-in type)
Measuring electrical characteristics of components prevents mounting defects due to component mis-setting. Stable measurement is possible by holding the posture and position of the component with an adhesive material, and by pressing down on the component with a metal lever, highly accurate measurement is possible regardless of the nozzle used.
Maximize O.E.E by minimizing various losses
Unit condition monitoring~analysis to optimize maintenance
APC-5M (option)
To ontrol 5M variation autonomously, unit condition can be monitored, analyzed easily to ensure proper maintenance.
5M Unit conditions are monitored in real time to control variations autonomously, enabling predictive maintenance before conditions deteriorate and preventing errors due to lack of maintenance.
Not only showing the status of each equipment, but also the entire line can be displayed on the LPC (Line Process Controller) screen for line status monitoring, and the status of target units in the line can be broken down for time-series analysis. The status after maintenance can also be checked to determine if maintenance is appropriate.
※5M : huMan, Machine, Material, Method, Measurement
Variation control with inspection machine (AOI/SPI)
APC System (APC-FF/APC-MFB2)
Maintains placement quality by controlling variation in solder printing and component placement in conjunction with the inspection machine.
APC-FF is our unique in-line process control system that feeds forward the mounting position correction amount to the mounter based on the solder position data measured by solder inspection to maintain placement quality.
The APC-MFB2 maintains mounting quality by feeding back component position data measured by the inspection machine (AOI) to the mounting machine after component placement.
Skill-less and labor-saving
Error recovery work performed offsite location
Remote Operation
Error recovery operations can be done remotely and efficiently, preventing on-site operators from being late in noticing error signals and allowing on-site operators to concentrate on supplying components, thereby improving productivity and reducing manpower.
Display AOI information on target machine screen when a quality error occurs
AOI information display
When a quality error occurs in AOI, quality error response can be performed skillless to improve operation rate. When a quality error occurs in AOI, information about the target device can be displayed in AOI, and AOI information including images can be displayed in the target device to respond skillless.
Main Specifications
| NPM-D3A | |
|---|---|
| PCB dimensions (mm) | L 510 × W 590 mm |
| Placement Head max Speed | 46 000 cph (0.078 s / chip) 38 000 cph (0.095 s / chip) |
| Placement Head Placement Accuracy (Cpk≧1) | ±37μm / chip ±30μm/ chip |
| Component dimensions | 0402chip ～ L 100 × W 90 × T 28 |
| Maximum number of components supply (Tape Width: 4 mm, 8 mm calculation) | 68 |
