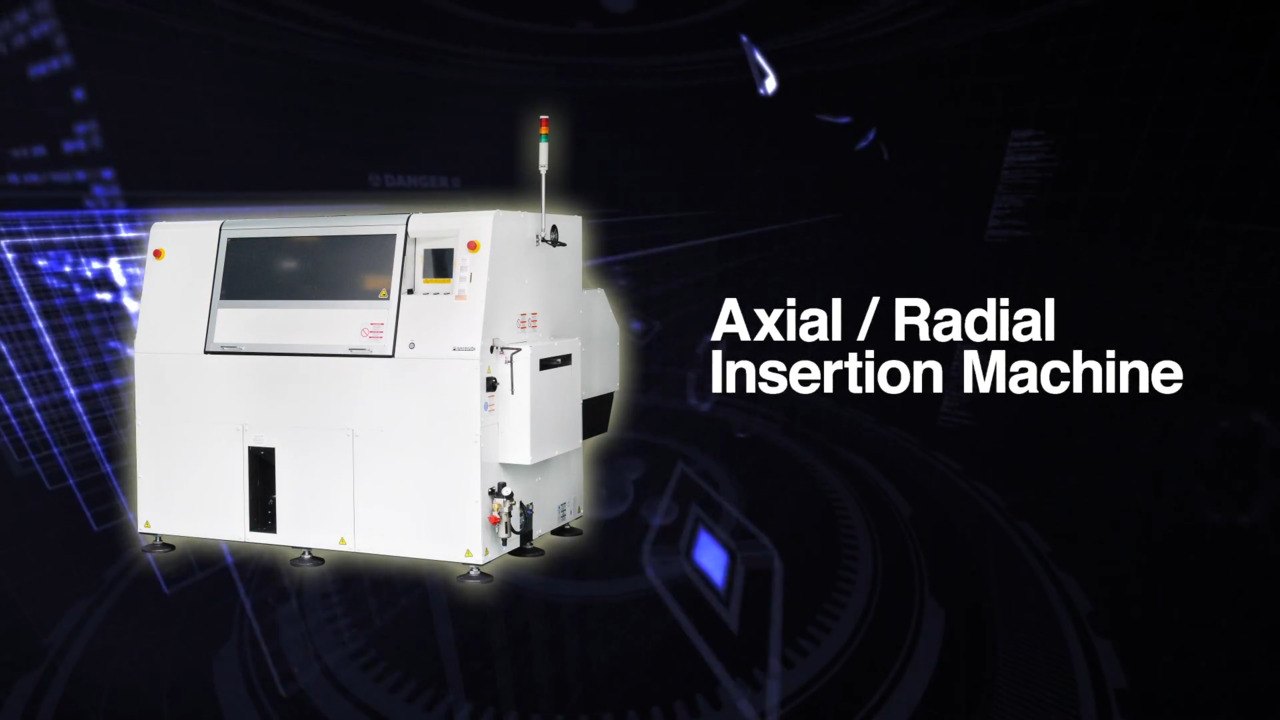

High speed Axial Lead Component Insertion Machine AV132

High speed Axial Lead Component Insertion Machine AV132

High production efficiency and low-cost production through technological innovation.

Highly efficient production

  • Sequence type components supply system, 0.12 s/component and approx. 2 s/PCB change time
  • The fixed component feeder unit and the out-of-component detection feature allows replenishing components beforehand for long-term non-stop operation.
  • A full auto-recovery function is provided capable of handling insertion errors automatically for non-stop production for a long time.

Improved operability

  • The liquid crystal touch screen is employed for the control panel and easy operation can be provided by the operation guidance indication.
  • Setup changeover support functions that display the component layout of the component supply unit on the screen are provided.
  • Maintenance support functions that display information of regular check timing and operation content are provided.

Enlargement function option

  • Large-size PCB support option allows hole recognition and insertion up to PCB size of Max. 650 mm x 381 mm.
  • 2 PCB transfer option can decrease PCB loading time by half and increase productivity.

Features and Benefits of “High speed Axial Lead Component Insertion Machine AV132”

Increased productivity, max. speed 0.12 s/component

  • Tact 0.12 s
  • 22,000 CPH
  • Sequence method component supply 40/80 stations

Sequence method component supply

  • The fixed component supply unit allows non-stop production.

Sequencer belt

Sequencer belt
Increased production efficiency


Common for 26 and 52 mm

Automated feeder

Automated feeder
Component supply quality increase

Compact design reduces occupied area by 28%.

Increased area productivity

  • Total area = 13.10 m2
    AV131-60S - RL131-40S
  • Total area = 9.43 m2
    AV132-40S - RL132-40S
