Do you face any of these problems?

  • Need to achieve miniaturization of module
  • Need to achieve high speed at low cost

We propose high-performance bonders that achieve miniaturization, reduction in thickness and high functionality for devices and modules, including FOWLP

Compared to the method of bonding ICs on the PCB, FOWLP allows thinner designs by inserting a rewiring layer in the PCB layer.

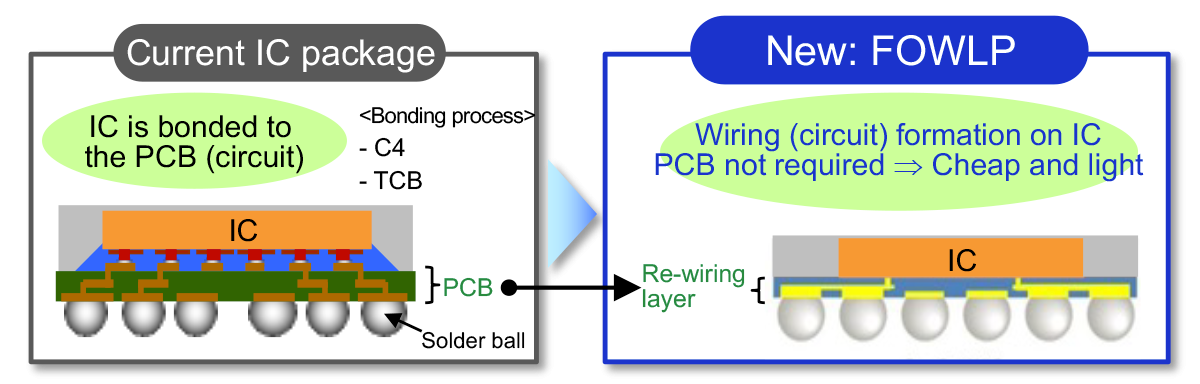

Image: FOWLP

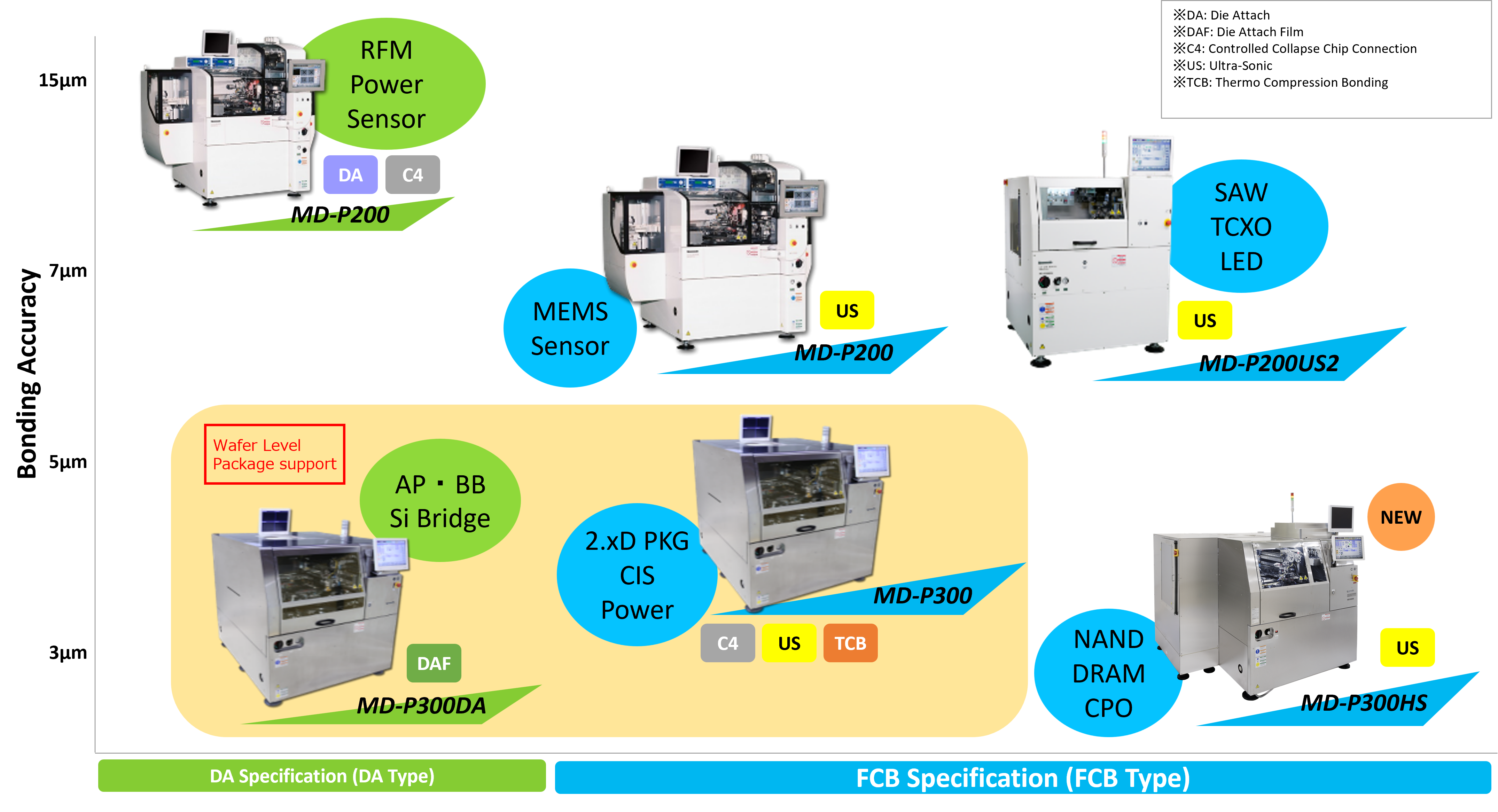

Target machinery and target packages

Target machinery and target packages

Solutions

Bonder proposals in FOWLP

Flip-chip bonding method and die attach method are available.

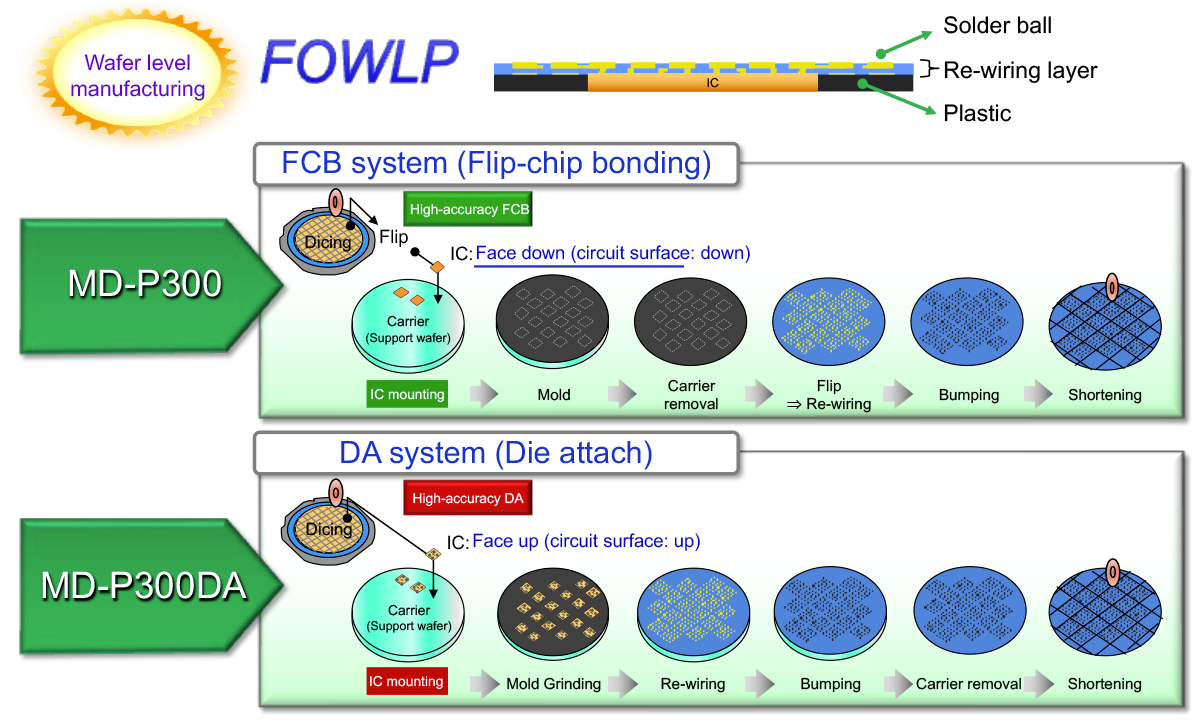

Image: Bonder proposals in FOWLP

Related products


Flip-chip Bonder MD-P300

Flip-chip Bonder

MD-P300

Supports φ300 mm wafer supply. Realizes high-speed and high-accuracy flip-chip bonding applicable to COW bonding too.

See Details


Flip-chip bonding (Ultrasonic bonding)

In flip-chip bonding, which achieves miniaturization, Panasonic has especially honed its ultrasonic (US) bonding technology. The MD-P200US2 specially designed for the production of small devices (SAW-F, TCXO, etc.), contributes to customers’ production with its unique US monitoring function and the fastest bonding speed in the industry.


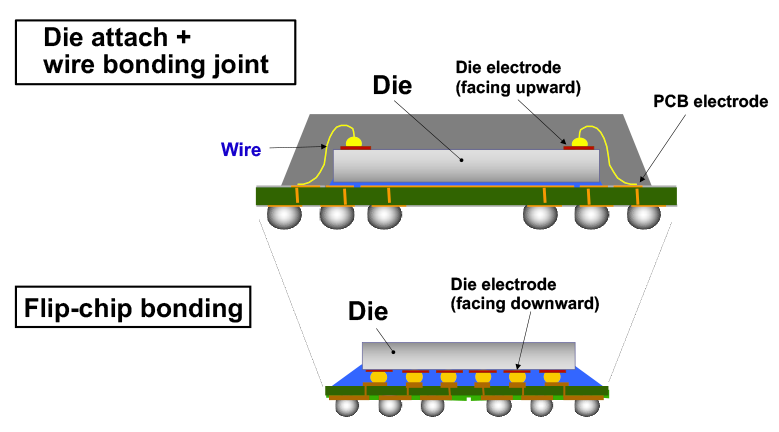

Image: Difference in bonding methods

▲Difference in bonding methods


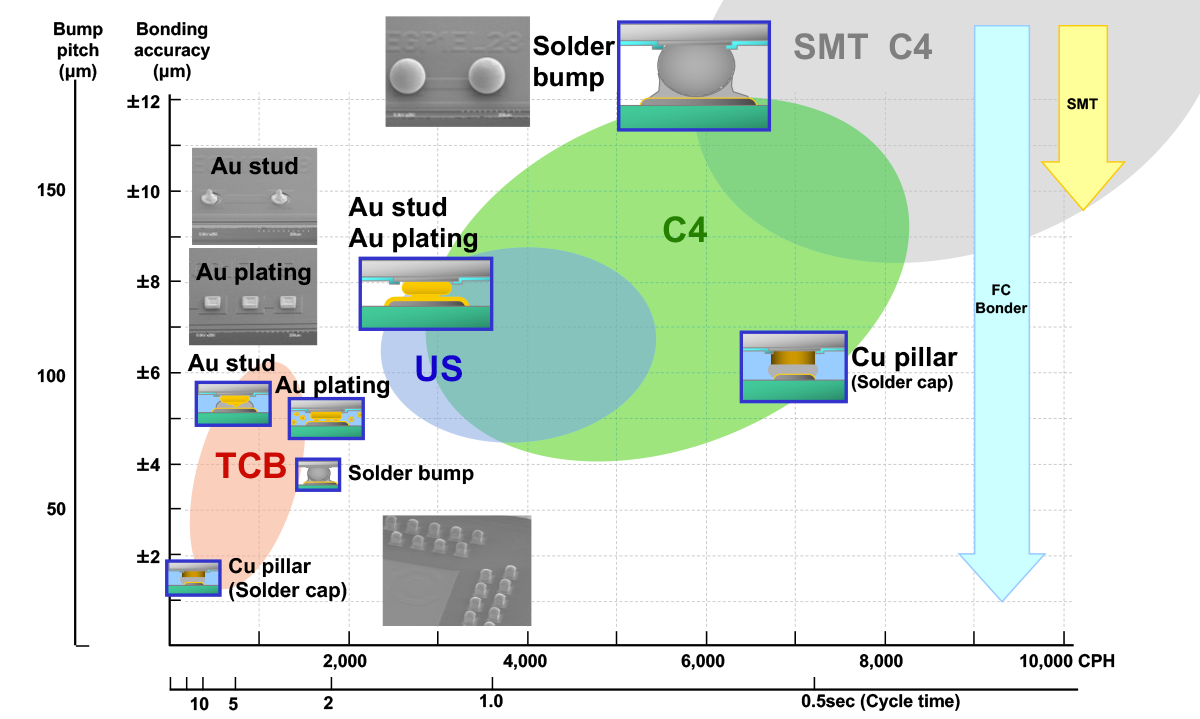

Image: Bonding accuracy and productivity when ultrasonic (US) bonding is used

▲Bonding accuracy and productivity when ultrasonic (US) bonding is used


Related products


Die Bonder MD-P200

Die Bonder

MD-P200

Bonding device that is compatible with various bonding processes for state-of-the-art device assembly.

See Details

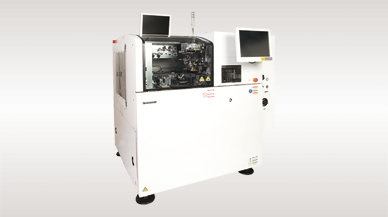

Flip-chip Bonder MD-P200US2

Flip-chip Bonder

MD-P200US2

Specialized ultrasonic flip-chip machine. Uses proprietary US tool and achieves a consistent quality.

See Details


Supports various bonding processes

Compared to die bonding alone, this method achieves miniaturization, higher speed, and lower cost by supporting a variety of processes.

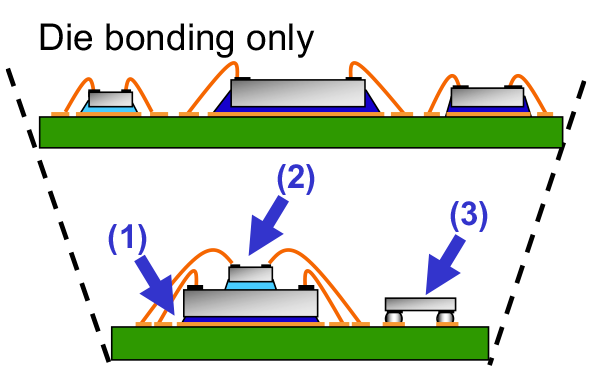

Image: Supports various bonding processes

(1) Supports high-accuracy multi-die bonding

  • Multi-die bonding of microchip dies in close adjacency on narrow pads contributes to module miniaturization
  • Miniaturization contributes to cost reduction (base material, Au)
    Die: Min 0.25 mm, Max 12 brands
    Accuracy: DA; 15 μm/3σ

(2) Supports stack bonding

  • Continuous stack bonding contributes to miniaturization of modules and lower cost by reducing intermediate heat treatment
  • Miniaturization contributes to cost reduction (base material, Au)
    Epoxy: Automatic switching of 2 brands

(3) Supports flip-chip bonding

  • Contributes to miniaturization by less wire space
  • Contributes to speeding up of processing by reducing wire length
  • Contributes to cost reduction (Au→solder) by
    C4 bonding
    Accuracy: FC; ±7 μm/3σ

Related products


Die Bonder MD-P200

Die Bonder

MD-P200

Bonding device that is compatible with various bonding processes for state-of-the-art device assembly.

See Details
