Device-related Systems MD-P300 Flip-chip Bonder

Flip Chip Bonder MD-P300

A flip-chip bonder for high-speed, high-quality placement of bare ICs for cutting-edge devices
MD-P300_SSsize_24_0401 (1).png

MD-P300 Flip-chip Bonder

  • MD-P300 Flip-chip Bonder

Main Features

  • The basic structure comprises fixed-point pickup and placement that supports supply of wafers up to ⌀300 mm
  • Process change is possible by switching the bonding tool(Compatible with GGI/C4/TCB)
  • High-precision placement of ± 5 um is achieved using the placement nozzle where the chip backside recognition result obtained by a flip camera is feed-forwarded to handling
  • For productivity, high-speed placement of 5,500 CPH (production output per hour) is achieved
The MD-P300 Flip-chip Bonder is process-flexible, combining flip-chip and thermosonic bonding in a single, small-footprint solution.The MD-P300 contributes to the cost-effective production (high yield, high throughput) of value-added devices. The MD-P300 can achieve high speed and high accuracy bonding through its low gravity point and lightweight bonding head. The MD-P300 supports 300 mm (12") wafers, and is an ideal solution for COB hybrid assembly in combination with an in-line Panasonic SMT placement machine.The MD-P300 is capable of fast cycle times and a placement accuracy of +/-5 μm at 0.5 seconds per IC (dry run) - with thermosonic processes at 0.65 seconds, including process times.

Strengths and Features

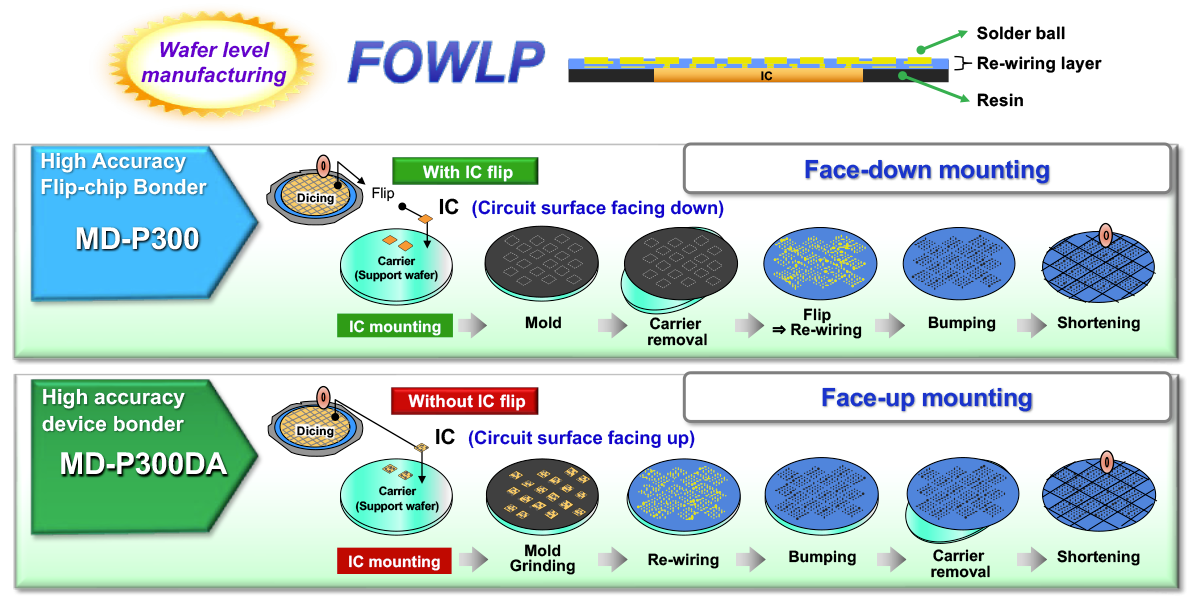

FOWLP

Main Specifications

MD-P300 Flip-chip Bonder
Placement Accuracy
XY ( 3σ at Panasonic conditions ) : ±5 μm
Substrate dimensions
L 50 mm × W 50 mm to L 330 mm × W 330 mm ( Heating specifications : L 330 mm × W 220 mm )
Die dimensions (mm)
L 1 mm × W 1 mm to L 25 mm × W 25 mm ( Thermosonic : L 7 mm × W 7 mm)
Die Supply
Wafer frame 12 inches ( Option : 8 inches )
Bonding Load
VCM head : 1 N to 50 N ( Option : 2 N to 100 N )
