Screen Printer SPV-DC
SPV-DC
Main Features
- High productivity in a compact package
- High printing quality
Compact screen printer with high efficiency production and dual lanes
Highly efficient production and dual lanes are realized in a compact size, providing the best functionality for your production configuration.
SPV-DC
Strengths and Features
High productivity
High speed production
The same model can be printed at the front and rear printing stages to support high-speed production lines.
Non-stop model changeover
The next model can be set up during one-side stage production, thus realizing zero model changeover time.
Automatic solder supply (optional)
Two solder pots allow continuous operation for 4 hours.
High printing quality
Mask adsorption plate separation
Even with a mask with loose tension, the mask is adhered to the substrate by adsorbing the mask. Also, by removing the mask from the stencil while it is still adsorbed, the mask is removed from the stencil uniformly and stable quality can be maintained.
Hybrid PCB adsorption
Air flow is generated from the top to the bottom of the mask to improve solder release.
M2M line solution (APC-FB) (option)
Analyzes the measured data of solder inspection and corrects the print position (X, Y, θ).

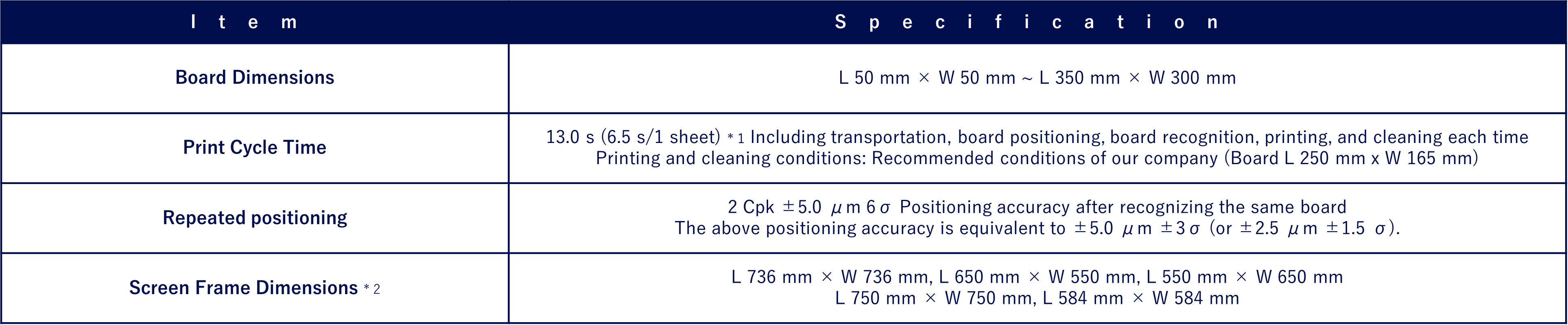

Main Specifications
| SPV-DC | |
|---|---|
| PCB dimensions (mm) | L 50 mm × W 50 mm to L 350 mm × W 300 mm |
| PCB exchange | 13.0 s ( 6.5 s / PCB ) Including transfer , positioning , recognition , each-time cleaning. Printing & cleaning conditions : Our recommended conditions ( PCB dimensions L 250 mm × W 165 mm ) |
| Repeatability | 2 Cpk ±5.0 μm 6 σ The repeatability of same PCB Equal to ±5.0 μm ± 3 σ ( or ±2.5 μm ±1.5 σ ) |
| Screen frame dimensions | L 736 mm × W 736 mm , L 650 mm × W 550 mm , L 550 mm × W 650 mm L 750 mm × W 750 mm , L 584 mm × W 584 mm |
