Support for various PCBs and production formats
Proposals to address issues
Do you face any of these problems?
As PCBs become more diverse, each industry demands a variety of component mounting needs, such as thin and large PCBs, and small component and high-density mounting.Panasonic offers solutions that support various PCBs, as well as solutions that achieve high quality and productivity.
Panasonic’s proposals for solving your problems
For more information, please download the document.
Various PCBs and production forms < System software>
Need to ensure mounting quality by reducing the influence of printing and mounting misalignment
APC System (APC-FF/APC-MFB2)
The placement position is corrected in cooperation with other companies' inspection equipment to maintain mounting quality for printing and mounting displacement caused by PCB expansion and contraction.
Need to ensure mounting quality by reducing the influence of printing and mounting misalignment
Manufacturing Operation Optimizer MFO
Resource information such as production conditions, number of workers, and multiple line configurations, as well as production performance information, are reflected in the production plan created by the production scheduler. Automatically generates production planning and implementation programs with less changeover and high production efficiency.
Various PCBs and production forms < Printer System>
Need to print properly on warped PCB
Top/Side Clamper
In addition to the conventional side clamper, a top clamper is adopted to hold the PCB from the top. This strengthens the solution to PCB warpage and further improves print quality.
Various boards and production forms
Need to improve mounting quality by aligning PCB height (warp)
Height sensor
The entire PCB height (warpage) can be measured, the mounting height can be corrected, and placement can be performed. If the measurement result exceeds the allowable value, a warning is issued before starting placement.
Need to respond the number of components flexibly
General-purpose cell line

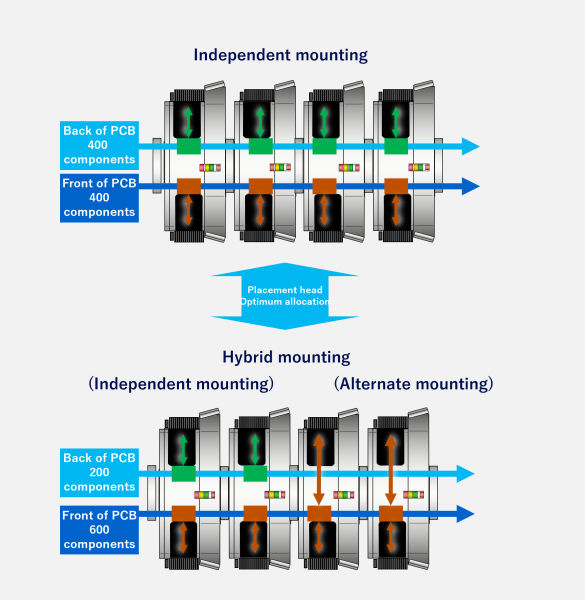

This line eliminates balance loss in the production of multiple models with different placement points on the front and back of the PCB, and achieves high-efficiency operation. For example, utilizing dual lanes, balance loss is eliminated by optimal allocation of the number of heads even when there is a difference in the number of placement points on the front and back of a mixed flow line.
For more information, please download the document.
For other solutions, please see the downloadable documents. Please contact us for more information on products compatible with each function.
Download
Related products
Screen Printer
NPM-GP/L
Optimizes the screen printing process. Equipped with automation functions, also capable of high-accuracy screen printing.
Modular Placement Machine
NPM-GH
This edge device achieves industry-leading productivity and mounting quality for Autonomous Factory. Proposes control of irregularities in the 5Ms and elimination of skill-dependent work.
Modular Placement Machine
NPM-GW
The basic performance has been improved by renewing the core units, such as the mounting head and recognition camera. It now supports a wide range of parts and PCBs.
Manufacturing Operations Optimizer
MFO
The “Next Innovation" in mounting production lines.
Automatic planning of optimal production based on collected worksite information, parameters, and mounting PCB data
APC System
Connecting a mounting machine or printers to inspection equipment enables components to be placed correctly in the target position
