Panasonic’s Total Mounting Solutions

We introduce total mounting solutions focusing on mounting machines used by many of our global customers.

Panasonic’s total mounting solutions

Panasonic’s mounting solutions include not only mounting machines that are edge devices, but also line management using the Integrated Line Management System “iLNB” and the whole mounting site simulation system “MFO.” Through these solutions, we can offer both cyber and physical initiatives utilizing IoT that “connect” machines with each other.
Our robust global support system provides high-quality, uniform service to customers wherever they are in the world.

Panasonic connects with your management and worksites to enable early detection of problems and stable operations.

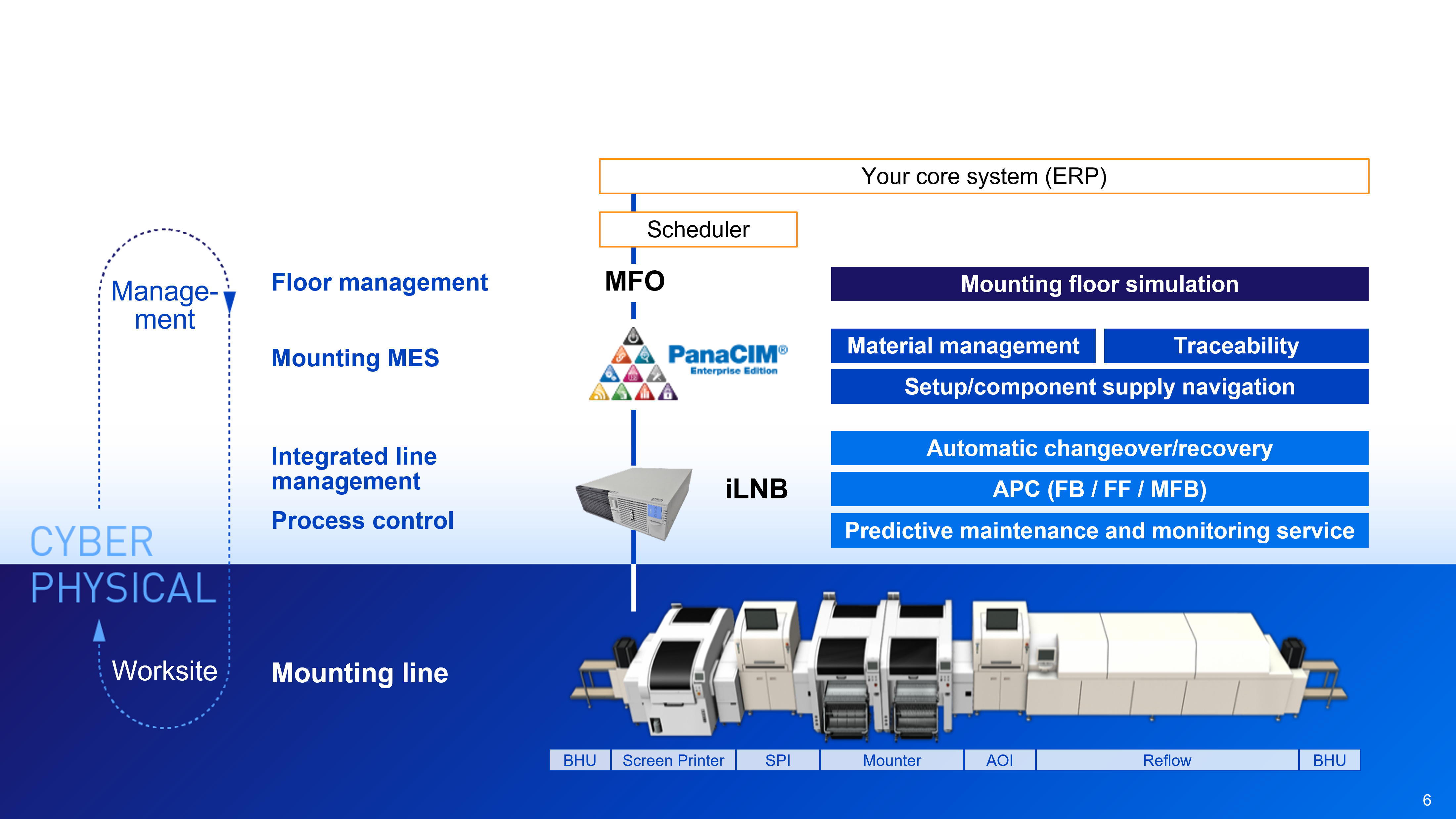

Image: Panasonic’s total mounting solutions

Panasonic’s mounting line solutions

Panasonic offers line solutions that include both mounting machines and printers.
By using iLNB in combination with batch control of lines including other companies’ machines, it is possible to manage the changeover of models all at once for the mounting line. Sequential changeover significantly reduces downtime.

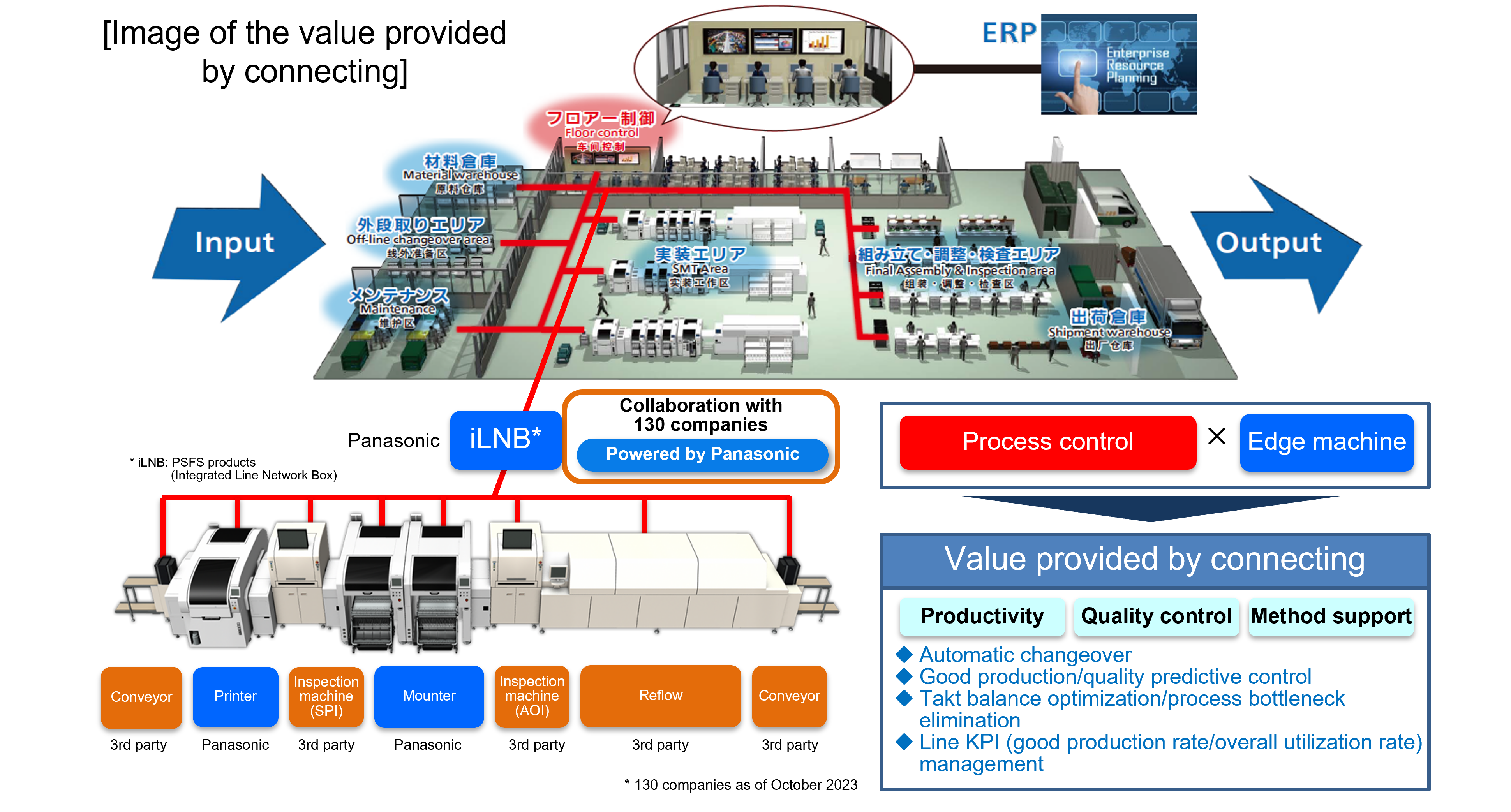

Image of the value provided by connecting

Features of Panasonic’s mounting machines

1. High area productivity in the total mounting line

The dual mounting method includes alternate mounting and independent mounting, enabling selection of operations to suit various production modes, from high-speed production to high-mix, low-volume production.
It is also directly coupled with the NPM-TT2 to achieve independent mounting of tray components, which improves the output of the entire line.

Alternate mounting mode


High-mix, low-volume production

Reduction in the number of feeders
No PCB transfer losses

Independent mounting mode


High-speed mass production

Maximization of productivity
Independent changeover

Hybrid mounting mode


Highly efficient production

Independent mounting of microchip components
Alternate mounting of odd-form components

2. Mounting line that customers can freely choose and create

Heads, feeders, and component supply sections can be freely reconfigured at your site.
These flexibly support changes in PCBs and components to achieve optimal line construction.

Placement heads, Feeders, Component supply sections

3. Total management of lines, floors, and factories with system software

We will introduce the main features that reduce three types of losses: operating loss, performance loss, and defect loss, with the aim of maximizing overall equipment efficiency (OEE) at your site. Total management of lines, floors, and factories improves and maintains OEE.

Improving, maintaining, and enhancing OEE - Examples of typical improvement and maintenance features

Image: Automatic recovery (option)

Automatic recovery (option)

The task to recover from any pickup or recognition errors is automated. This cuts downtime losses and enhances availability

Image: Remote operation (option)

Remote operation (option)

Remote operation from a center control station reduces operating time of the on-site operator and enhances availability

DGS setup optimization (option)

DGS setup optimization (option)

This optimizes production involving several different models to minimize setup workloads, thereby reducing model changeover time

Image: Head diagnostics (option)

Head diagnostics (option)

Automatically diagnostics of head are performed on a regular basis, and production losses resulting from heads are avoided by keeping track of any change in the condition of a head and performing maintenance

Features of Panasonic’s screen printer

Panasonic offers three models of screen printers: the NPM-GP/L, which achieves SMT line integration, automation, and sequential model changeover through a combination of integrated line control including other manufacturers’ equipment using iLNB; the SPV, which maximizes the dual mounting feature of the NPM series, and the SPV-DC.

1. Realization of automated operation

(in the case of the NPM-GP/L)

You can select operations to suit various production modes, from high-speed production to high-mix, low-volume production. Simultaneous production with different models at the front and rear reduces intermediate inventory. The solution is also the first in the industry to achieve consistent automated line changeover.

Achieved the industry’s first integrated automated line changeover

2. Dual lanes

(in the case of the SPV-DC and SPV)

Image: Dual lanes
