Problem: Long Cycle Time
Problem: Long Cycle Time
Welding speed can be improved significantly with the Super Active welding method.
Problems faced by customers
■Need to reduce cycle time without changing welding appearance.

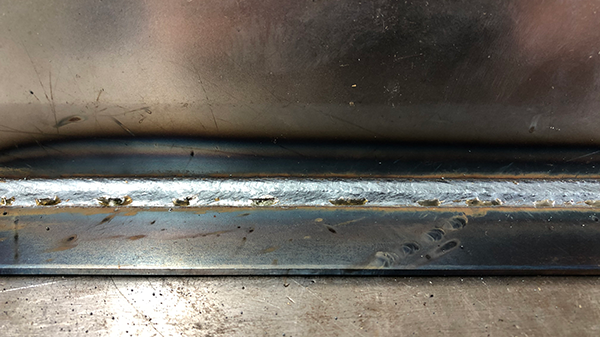

Standard CO2welding (Click to enlarge)
Welding method: MTS-CO2 (Standard)
Base metal: Mild steel, Plate thickness: 2.3 mm, Wire diameter: ϕ1.2 mm.
Welding current: 170 A, Welding speed: 50 cm/min

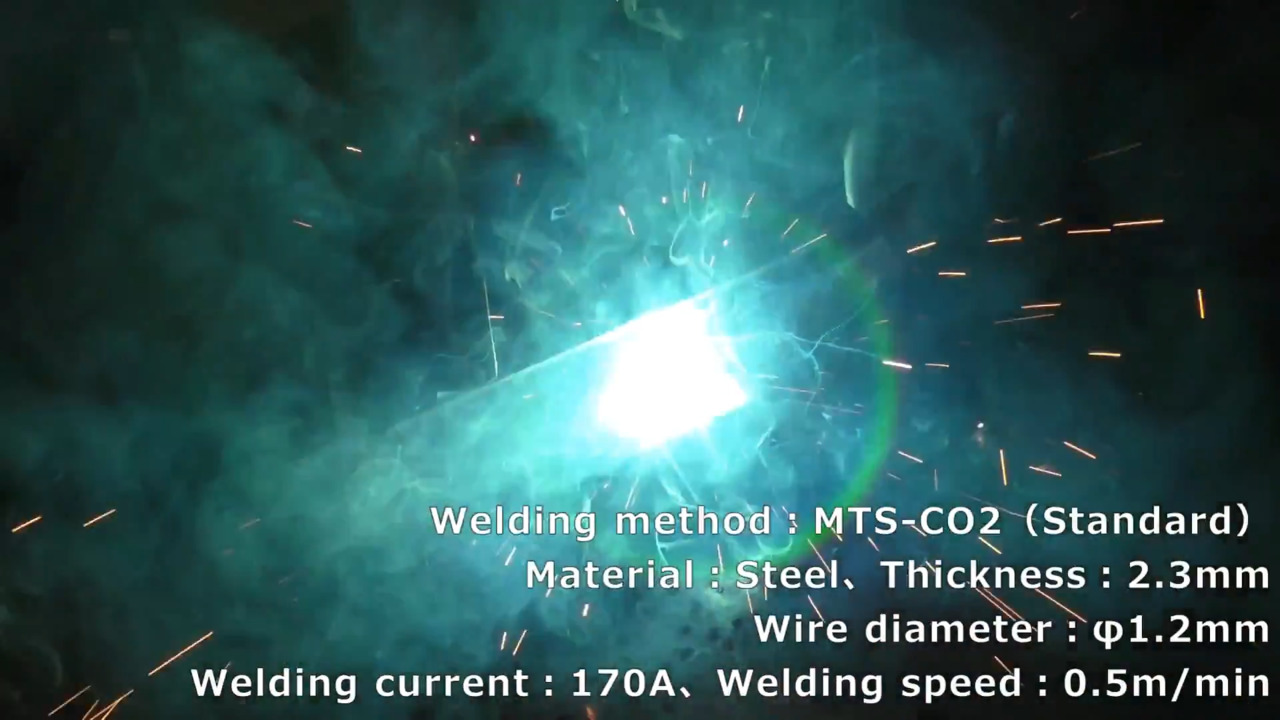

Video (scattering of spatter with standard CO2 welding)
Solution: Super Active wire Method for Beautiful and Fast Welding
What is the Super Active Wire Feed Process?
High-precision feed control where the welding wire is fed continuously with a back and forth motion. Spatter reduction by stable short-arc cycle.
Result : The Super Active Welding Method has more than Doubled the Welding speed, improves weld appearance and reduces spatter.

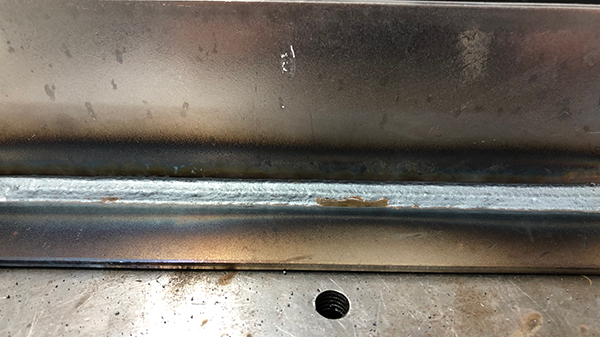

Super Active welding method (Click to enlarge)
Bead is smooth even when welding speed is more than doubled.

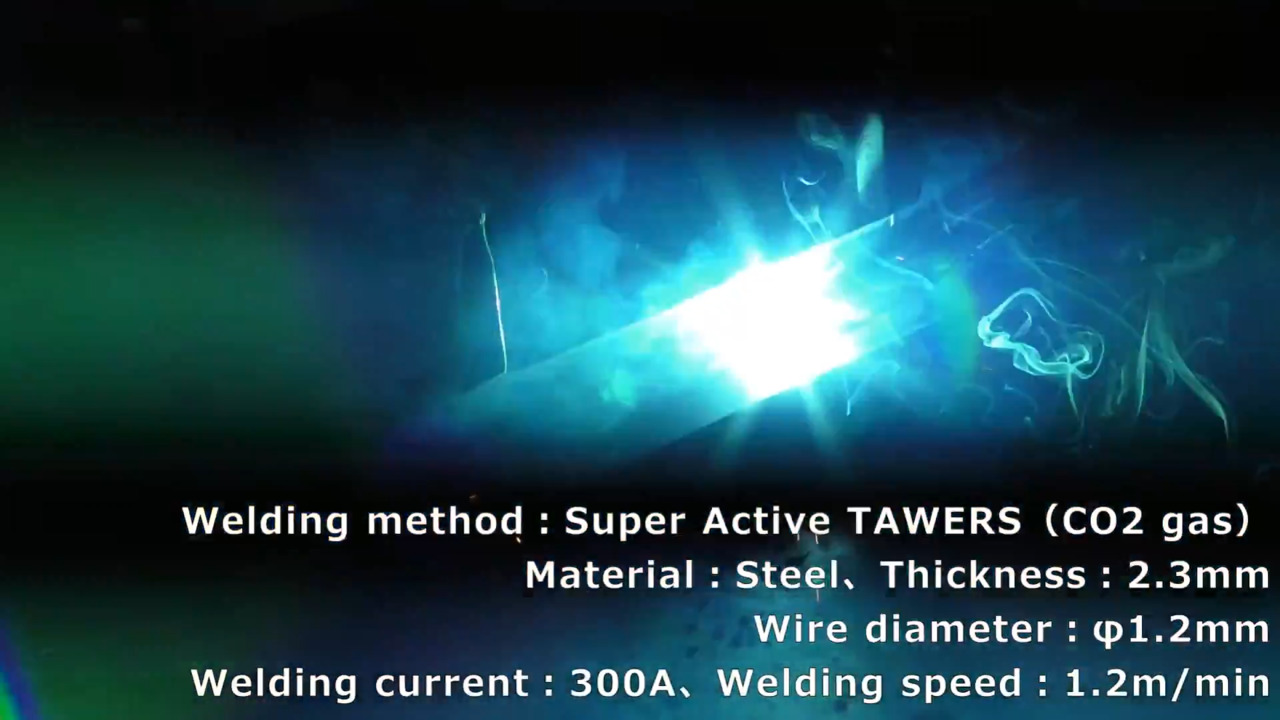

Video (scattering of spatter with standard CO2 welding)
Welding method: Super Active welding method (TAWERS CO2)
Base metal: Mild steel, Plate thickness: 2.3 mm, Wire diameter: ϕ1.2 mm.
Welding current: 300 A, Welding speed: 120 cm/min
