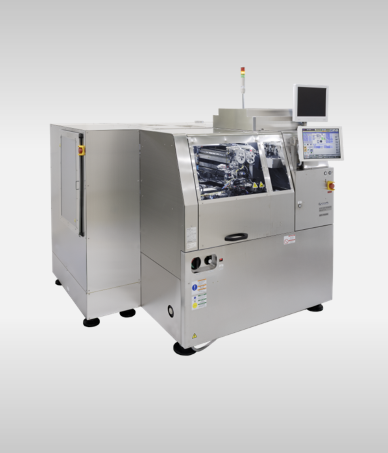

Flip Chip Bonder MD-P300HS
Flip Chip Bonder MD-P300HS
New flip chip bonder that improves semiconductor manufacturing productivity and realizes high-quality and high-precision bonding
Features
- Low-temperature bonding by ultrasonic technology reduces damage to devices and significantly reduces process time.
- The post-bonding process can be introduced at low cost due to compatibility with conventional equipment and materials.
- Improved bonding accuracy of ultrasonic technology from ±5 μm to ±3 μm enables higher performance and thinner semiconductor packages such as FCBGA, FCCSP, and optical communication devices.
- Real-time monitoring (Bond force, voltage/current/power, impedance, bump crush height, etc.) enables stable quality control by detecting abnormalities in the bonding process.
Features and Benefits of “Flip-chip Bonder MD-P300HS”

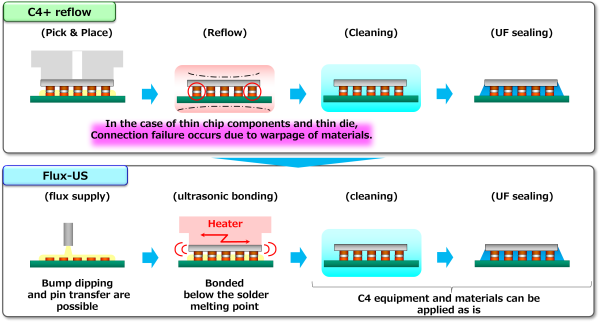

１．Improved productivity by ultrasonic bonding
- Ultrasonic technology enables bonding at low temperatures to reduce device damage and warpage, while reducing the process time from more than 10 seconds※1in the thermocompression bonding method to less than 2 seconds to ensure quality.
- Conventional C4 equipment and materials can be used in the post-bonding process, enabling low-cost installation.
※1 Evaluation data using conventional MD-P300 (NM-EFF1C)
２．Improved bonding accuracy
- The bonding accuracy of conventional ultrasonic technology has been improved from ±5 μm to ±3 μm to meet the needs for higher performance and thinner packaging of next-generation semiconductors such as FCBGA (flip-chip ball grid array), FCCSP (flip-chip chip size package), and optical communication devices.

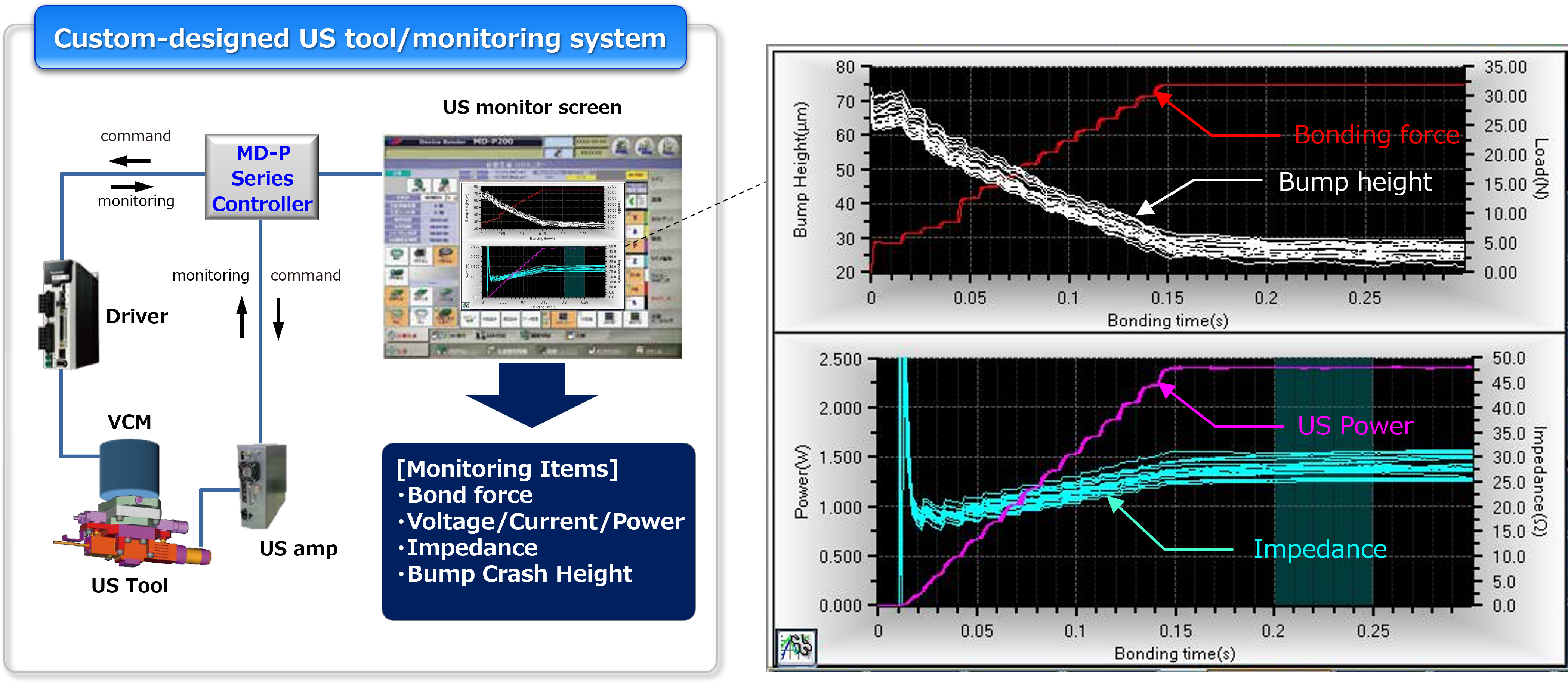

３．Visualization of bonding quality
- Stable quality control is achieved with the ability to constantly monitor conditions during bonding and to monitor process abnormalities such as bond force, voltage/current/power, impedance and bump crush height in real time.
