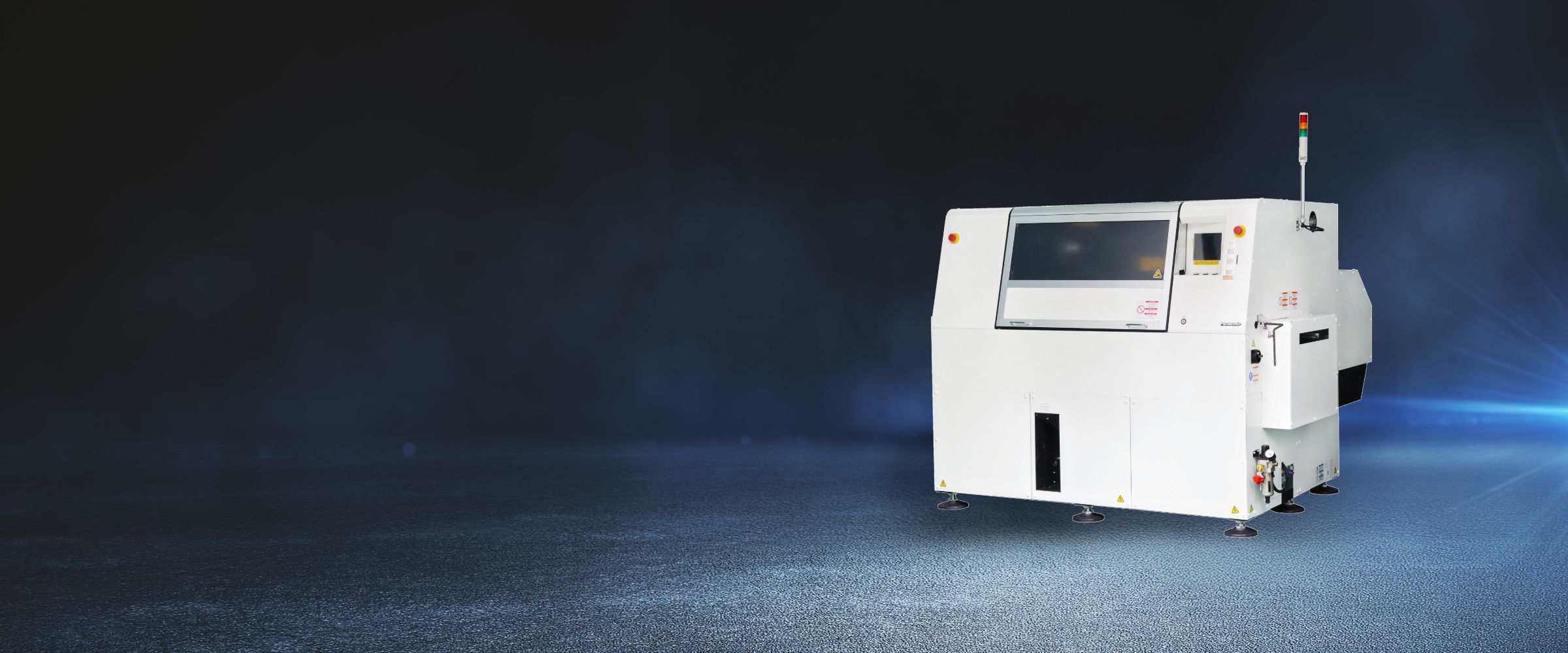

High speed Axial Lead Component Insertion Machine AV132
supply system and vertical automated feeder
AV132
Main Features
- In addition to high-speed insertion of 0.12 s/ component, operation rate is improved by adopting sequential component supply system
- The vertical automatic feeder system enhances stability of component supply with reduced footprint and allows up to 40 components to be loaded
- Various operation modes are realized by the two-separate component supply unit (80-slot type only)
High speed Axial Lead Component Insertion Machine AV132 for high productivity with High speed insertion of 0.12 s / component , sequential component supply system and vertical automated feeder
This is a high speed axial lead component insertion machine that inserts axial components and jumper wires at high speed (0.12 s/component).A sequential system has been adopted in the component supply unit to improve the operation rate.
Strengths and Features
Problems this product contributes to
High reliability
Vertical automated feeder and hole position offset function improved components supply reliability and stable insertion.
Large-size PCB support
Large-size PCB support option allows hole recognition and insertion up to PCB size of Max.650 mm × 381 mm.
High productivity
high speed insertion
The high speed axial component insertion machine adopting sequential component supply unit system allow you to attain 0.12 s / component.
Highly efficient production
The 80-slot type specification employs the dual- partitioned component supply method. It enables to select the operation mode( connection,preparation and exchange mode) according to the production mode, from mass production to low-volume production of a wide variety of products.The operation rate and productivity have been improved by reducing machine downtime when out of components or changeover. (Figure is an example of the exchange mode)
High reliability

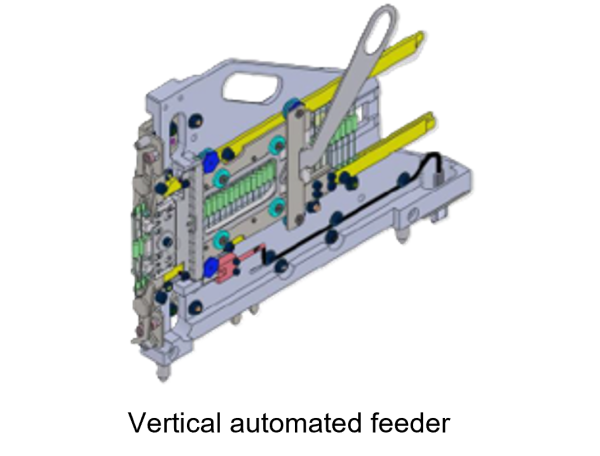

Vertical automated feeder
Mixable with 26 mm and 52 mm feeders.Reliability and space saving of components supply are realized by holding the lead of the taped components and transfering it securely.
Hole position offset function
Recognizing the positions of all the holes (two) in the insertion area, the machine corrects the component position based on the optimum insertion position calculated, ensuring reliable insertion.In addition, rotation correction and insertion pitch correction functions are also available to achieve a high insertion rate by high-precision positioning correction (XY, θ, W).
Large-size PCB support
Large-size PCB support option
Large-size PCB support option allows hole recognition and insertion up to PCB size of Max.650 mm × 381 mm.
2 PCB transfer option
Two PCBs are carried into the XY table, and two PCBs are produced in one process.
2 PCB transfer option can decrease PCB loading time by half and increase productivity.
Main Specifications
| AV132 | |
|---|---|
| PCB dimensions (mm) | L 50 mm × W 50 mm ～ L 508 mm × W 381 mm |
| Max Speed | 0.12 s/component |
| No of components input | NM-EJA5A：40 NM-EJA6A：40+40 |
| Applicable components | Resistors1 / 8 W , 1 / 6 W , 1 / 4 W , 1 / 2 W , Jumper wire ( tin-plated wire ) , Diodes , Cylindrical ceramic capacitor |
