Twin Inverter AC/DC dual use TIG Welding Machine

WX4 series

Overview

WX4 Series（200/300/500）

* In addition to this product (welding power source), a torch and gas regulator are required for welding.

Key functions

Various types of welding can be performed by switching the welding mode
Supports welding of various aluminum base materials by switching the pulse frequency
Safe and user-friendly design
50/60 Hz common
Output of various data to support quality control and frontline management

Issues

High-quality welding

Four welding modes are available for various applications. High-quality welding can be applied to aluminum, mild steel, and stainless steel.

Operating costs

Panasonic's proprietary mix TIG welding has excellent arc convergence, enabling efficient welding. Costs can be reduced by switching the pulse control to perform high-speed welding.

Strengths and Features

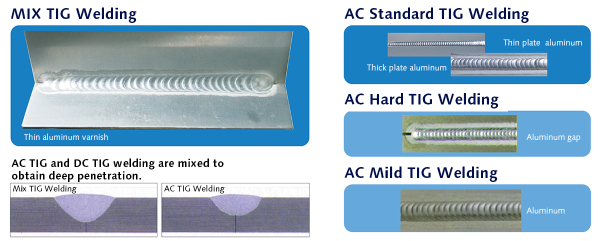

The optimal welding mode can be selected according to the application

The WX4 series is a TIG welding machine that can output both AC and DC currents. In addition to switching between high and low currents, it is also possible to perform the original Mix TIG welding that alternately outputs AC and DC currents. Suitable for welding various shapes from thin to thick plates.

Capable of welding various aluminum base materials by switching the welding mode

Due to the excellent arc convergence, it is effective for fillet (lap) joint welding of thin aluminum plates. Furthermore, when welding not only aluminum but also mild steel and stainless steel, users can select an appropriate arc start according to the application, enabling high-quality welding.

Capable of welding various aluminum base materials by switching the pulse frequency

The pulse width and pulse frequency can be switched separately. Even with the same current value, the average current value and heat input vary significantly by changing the pulse width and frequency. Operation can be easily switched on the front panel.

Equipped with functions in consideration of on-site work

This product can be used anywhere in Japan (both 50 and 60 Hz supported . In addition, the rated input power voltage can also be switched with a single button. Furthermore, it is equipped with an anomaly detection function. Therefore, even if a problem occurs, it is easy to identify the cause and reduce downtime.

■ Safe and user-friendly design

The crater control can be switched by selecting On, Off, or Repeated.
With the function for setting the up-slope time and down-slope time
With the function for setting the pre-flow time and post-flow time
With a switch to turn the electric shock prevention function On or Off for DC manual welding (on the PCB)
With an insufficient water flow detection function (torch protection)
With terminals for connecting jigs (pulse detection, current detection, emergency stop)
With an anomaly detection function

Option List

Torches for TIG welding

● Various types with rated currents from 80 to 500 A
(Standard cables with lengths of 4 m and 8 m are available)

Welding torches

Extension cables for welding torches

Gas regulator

●YX-251A
For argon gas welding

Remote control unit

●YC-301URTRK1
(Supports 200 to 500 A)
* With a 5 m long extension cable

Water-cooling option

See details

Specifications

Model number			YC-200WX4T00	YC-300WX4T00	YC-500WX4T00
Rated input voltage		V	200 AC (allowable fluctuation range: 180 to 220) 220 AC (allowable fluctuation range: 198 to 242) Selectable using the switch on the rear of the unit
Number of phases, rated frequency		ー	3-phase, 50/60 Hz (common)
Rated input		kVA	9	12	24
Rated input		kW	7	10.5	19.5
Rated duty cycle (10-minute cycle)		%	40		60
DC open circuit voltage		ー	Electric shock prevention function: On: 14, Off: 63		Electric shock prevention function: On: 14, Off: 75
AC open circuit voltage		ー	63		75
DC output current	TIG welding	A	4 to 200	4 to 300	5 to 500
DC output current	Manual welding	A	4 to 200	4 to 250	50 to 400
AC output current*	Mix TIG	A	10 to 200	10～300	20～500
	AC standard TIG	A	10 to 200	10 to 300	20 to 500
	AC hard TIG	A	20 to 200	20 to 300	20 to 500
	AC soft TIG	A	10 to 130	10 to 200	20 to 330
DC output voltage	TIG welding	V	16 to 18	16 to 20	16 to 24
DC output voltage	Manual welding	V	20 to 28	20 to 30	20 to 36
AC output voltage	Mix TIG	V	16 to 19	16 to 21	16 to 25
	AC standard TIG	V	16 to 20	16 to 22	16 to 26
	AC hard TIG	V	16 to 20	16 to 22	16 to 26
	AC soft TIG	V	16 to 17	16 to 20	16 to 22
Initial/crater current for AC standard/Mix		A	10 to 200	10 to 300	20 to 500
Initial/crater current for AC soft		A	10 to 130	10 to 200	20 to 330
Initial/crater current for AC hard		A	20 to 200	20 to 300	20 to 500
Initial/crater current for DC		A	4 to 200	4 to 300	5 to 500
Initial current control		ー	Available when the crater control is On or Repeated.
Up-slope time		s (seconds)	0 or 0.1 to 5
Up-slope time		s (seconds)	0 or 0.2 to 10
Gas pre-flow time		s (seconds)	0.3
Gas post-flow time		s (seconds)	2 to 20
Welding process that can adjust the cleaning width		ー	AC standard TIG/AC soft TIG/AC hard TIG/Mix TIG
Pulse frequency	Middle pulse	Hz	10 to 500
Pulse frequency	Low pulse	Hz	0.5 to 25
Pulse width		ー	15 to 85
Mix TIG frequency		Hz	0.5 to 10
Crater control		ー	On/Off/Repeated
External dimensions (width x depth x height)		mm	380 × 530 × 730		440 × 585 × 945
Mass		kg	74		113

* Please select the appropriate conditions to ensure a stable arc condition in the low current range.
