Inverter AC/DC TIG Welding Machine
(Portable TIG Welding Machine)
YE-200BR1
Overview
YE-200BR1
* This product is sold as a set. A welding power source, torch, and gas regulator are included.Key functions
-
Soft and stable arc performance achieved from a small current range
-
Easy-to-use operation panel
-
Supports welding of various types of metals
-
Lightest portable type in its class of products
-
Fully equipped with a welding power source, torch, and gas regulator as standard
Issues
A wide range of applications
This model supports the welding of various metals, including aluminum, stainless steel, copper, titanium, and brass.
Portability for on-site operations
This model has adopted an aluminum body and is the lightest portable type in its class of products. The well-balanced and lightweight body is easy to carry.
Strengths and Features
Soft and stable arc performance achieved from a small current range
This model has achieved soft and stable arc performance over wide output current ranges, from 10 A for AC and 4 A for DC to the rated output of 200 A for both. It enables high-quality welding with ease of pulse control simply by switching the frequency setting between High and Low.
Easy-to-use operation panel
Switches are efficiently located in consideration of the frequency of use and other actual on-site needs. Users can intuitively set conditions.
Supports the welding of various metals, including aluminum, stainless steel, copper, and titanium
The power source can output AC and DC currents, thereby enabling the welding of various metals such as aluminum, stainless steel, copper, titanium, and brass.
The penetration depth for AC TIG welding can be adjusted. The bead width and penetration depth can be adjusted by switches.
Lightest portable type in its class of products

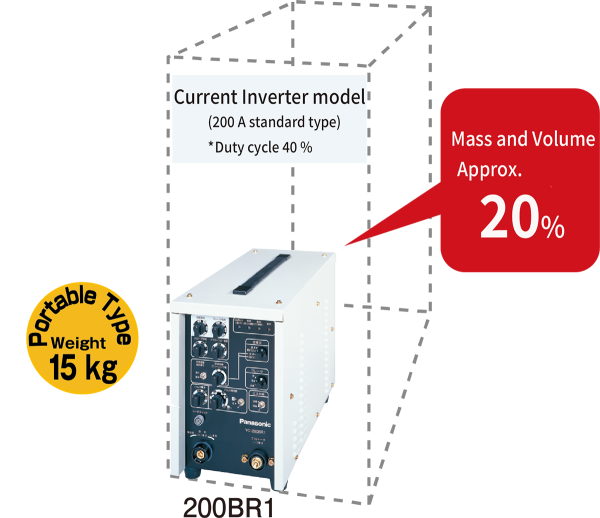

This model uses an aluminum body. Compared to conventional inverter machines, both the mass and volume have been reduced to approximately one fifth. Despite its compact size, it has achieved a duty cycle of 25% with an AC output of 200 A.
A welding power source, TIG welding torch, and argon gas regulator are included as a standard set
In addition to the welding power source, the standard set includes a welding torch, gas regulator, cable on the base material side, gas hose, hose band, and nuts and bolts. This model can be used immediately if you prepare a gas cylinder, ground cable, and switch box.
Specifications
| Model number | YE-200BR1T00 | |||
|---|---|---|---|---|
| Input power supply | Rated input voltage (tolerance) | V | 200 (170 to 240) | |
| Number of phases | 一 | Single-phase | ||
| Rated frequency | Hz | 50 / 60 (common) | ||
| Rated input | 一 | 7.3 kVA、5.4 kW | ||
| Output range and adjustment functions | Applicable welding process | 一 | DC TIG | AC TIG |
| Maximum open circuit voltage | V | 76 | ||
| Rated output current (adjustment range) |
A | 200 (4 to 200) | 200 (10 to 200) | |
| Rated load voltage | V | 18 | 20 | |
| Rated duty cycle | % | 25 | ||
| Up / down-slope time | s (seconds) | 0.2 to 5 | ||
| Gas pre-flow time | s (seconds) | 0.3 (fixed) | ||
| Gas post-flow time | s (seconds) | 0 to 10 | ||
| Cleaning width | % | ー | 10 to 50 (standard: 30 %) | |
| Switching of initial/crater control | 一 | On, Off, Repeated | ||
| Initial / crater current adjustment range | A | 4 to 200 | 10 to 200 | |
| Pulse welding | 一 | Available | ||
| Pulse current adjustment range | A | 4 to 200 | ||
| Pulse frequency | Hz | 0 to 25 (low), 10 to 500 (high) | ||
| Pulse width | % | 50 | ||
| Connection | Input connection | 一 | With a 3 m long three-core cable (including a ground cable and M6 connection terminals) | |
| Output connection | 一 | Base metal side: Quick connection terminal (Dinse terminal) Torch side: Screw-in connection terminal (screw: 3 / 8-24UNF) |
||
| Gas inlet fitting | 一 | Union nut connection (screw: 9 / 16-18UNF) | ||
| Structure | Case protection grade | 一 | IPX0 (indoor use) | |
| Control method | 一 | IGBT inverter type | ||
| Cooling method | 一 | Forced air cooling | ||
| TIG welding starting method | 一 | High-frequency start method | ||
| Requirement for grounding | 一 | Class D grounding or higher | ||
| External dimensions (width x depth x height) |
mm | 212 × 448 × 333 | ||
| Mass | kg | 15 | ||
*1: Please check the catalog for the applicable diameters of solid wires and FCWs.
*2: The depth dimension does not include the input power supply terminal cover on the rear panel.
● View the required power supply capacity and cable thickness data
