Inverter CO2/MAG Welding Machine
YD-600RF2
Overview
YD-600RF2
600RF2 Catalog* In addition to this product (welding power source), a wire feeder, remote control unit, torch, and gas regulator are required for welding.
Key functions
-
High power welding with a rated output of 600 A and a duty cycle of 100 %
-
Inverter-based meticulous control of welding waveforms
-
Easy-to-set operation panel
-
Robust structure
Issues
Welding of thick plates
A variety of arc characteristics are available as standard. The optimal mode can be selected according to various welding situations. Wires with a diameter of 1.4 mm can also be used, thereby enabling users to increase the welding current and the amount of wire deposition.
Maintaining high weldability
The combined use of the inverter and waveform control achieves stable arcs and high-quality welding even at a high output current range.
Strengths and Features
High power welding with a rated output of 600 A and a duty cycle of 100 %

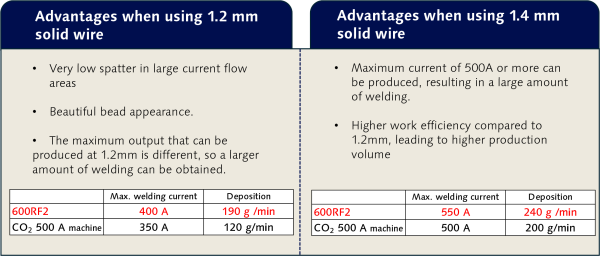

High power output, ideal for welding medium to thick plates. The fast welding speed achieves a large amount of deposition. Since there is a margin in the output voltage, the arc is stable even when using an extension cable.
* In the case of 55 V output, the duty cycle is 80 %.
Fine control based on the high-speed IGBT inverter
Stable arcs can be obtained over a wide range from low to high currents. In particular, stable welding is possible from an output of 120 A with a 1.4 mm diameter wire. (When welding mild steel using CO2 gas)

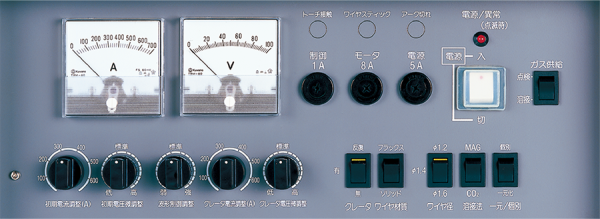

Switches for frequently used functions are located on the front panel
The initial current dial, initial voltage fine adjustment dial, and crater repeat function switch, which are frequently used when welding medium and thick plates, are located on the front panel.
Robust structure applicable to a wide range of site environments
By adopting a full sheet metal construction, this product has a robust structure that can be used in any welding site environments. The casters offer enhanced mobility.
Option List
Wire feeder
Welding torch
Gas regulator
●YX-25AD1
For CO2 / MAG
Remote control unit
●RF-60RFR1
* Cable length: 2 m
Water-cooling option
Specifications
| Rated input voltage | V | 200 to 440 AC (200, 220, 380, 400, 415, 440) Selectable using the switch on the rear of the unit |
|---|---|---|
| Number of phases | - | 3-phase |
| Rated frequency | Hz | 50 / 60 |
| Rated input | kVa | 37 |
| kW | 35 | |
| Maximum open circuit voltage | V | 73 DC |
| Rated duty cycle (10-minute cycle) | % | 100*1 |
| Output current adjustment range | A | 60 to 600 DC |
| Output voltage adjustment range | V | 14 to 55 DC |
| Control method | - | IGBT inverter type |
| Waveform control function | - | Dial setting |
| Applicable welding process | - | CO₂ / MAG |
| Applicable shielding gas | - | CO₂：100 ％ CO₂ MAG：80 ％ Ar and 20 % CO₂ |
| Applicable wire diameter | mm | 1.2 / 1.4 / 1.6 |
| Applicable wire materials | - | Mild steel / Mild steel FCW |
| Input power supply terminal | - | Outbound cable with crimp-on terminals (with M6 bolt) |
| Output terminal | - | Copper plate terminal (with M8 bolt) |
| External dimensions (width x depth x height) |
mm | 440 x 585 x 1005 |
| Mass | kg | 119 |
*1: In the case of an output voltage of 55 V, the duty cycle is 80%.
