Thyristor CO2/MAG Welding Machine・Gouging Machine
KH1 Series
Overview
KH1 Series (YD-500KH1/YD-600KH1)
Catalog coming soon
* In addition to this product (welding power source), a wire feeder, remote control unit, torch, and gas regulator are required for welding.
Key functions
-
Thyristor control that adapts to a wide range of environments
-
Four different functions for different purposes
Issues
Can this series be used even in a harsh environment?
It features a safety structure that is rated IP21 under the International Electrotechnical Commission (IEC) standards, and a safety design that prevents electric shocks and small animals from entering, thereby enabling use in a wide range of site environments.
Can this series be used for a wide range of applications?

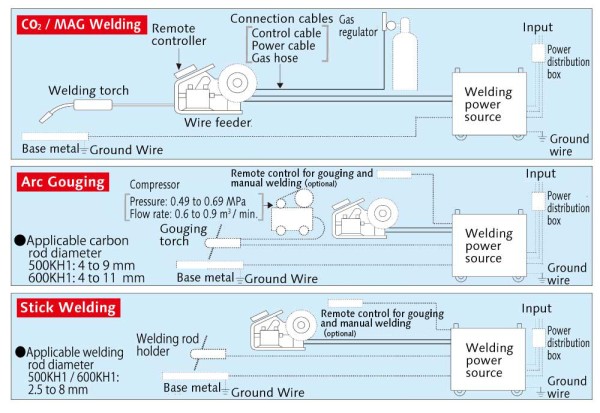

Four different functions can be used for different purposes, including DC manual welding and DC gouging. The switching of functions can be done easily using the remote control box.
Strengths and Features
Enhanced mobility achieved by eliminating the remote control unit cable
The remote control box has been incorporated into the wire feeder, thereby allowing operation at users' fingertips. The cable-less remote control unit improves mobility and reduces disconnection problems.
Robust structure applicable to a wide range of site environments
The KH1 series features a safety structure that is rated IP21 under the International Electrotechnical Commission (IEC) standards, and a safety design that prevents electric shocks and small animals from entering, enabling use in various site environments.
Four different functions that can be selected according to the applications
The power sources of this series are economical since every single unit can be used for CO2 welding, MAG welding, DC manual welding, and DC gouging work. The switching of functions can be easily performed using the remote control box.
Option List
Wire feeder
Welding torch
Gas regulator
●YX-25AD1
For CO2 / MAG / MIG welding
Remote control unit
Made-to-order models
Connection cable
Please purchase separately as necessary.
Specifiacations
| Model number | YD-500KH1 | YD-600KH1 | |
|---|---|---|---|
| Rated input voltage | V | 200 to 440 AC(200, 220, 380, 400, 440) | 200 to 440 AC(200, 220, 380, 440) |
| Number of phases, rated frequency | ー | 3-phase, 50/60 Hz | |
| Rated input | kVA | 31.9 | 45 |
| kW | 28.1 | 40 | |
| Maximum open circuit voltage | V | 66 DC | 77 DC |
| Rated duty cycle (10-minute cycle) | % | 60 | 100 |
| Output current adjustment range | A | CO₂/MAG welding: 60 to 500 DC DC manual welding: 100 to 500 DC |
CO₂/MAG welding: 60 to 600 DC DC manual welding: 100 to 600 DC |
| Output voltage adjustment range | V | 16 to 45 DC | 16 to 55 DC |
| Applicable welding process | ー | CO₂ / MAG welding, gouging, DC manual welding | |
| Applicable shielding gas | ー | CO₂: 100 % CO₂ MAG: 80 % Ar and 20 % CO₂ |
|
| Applicable wire diameter | mm | 1.2/1.4/1.6 | |
| Applicable wire materials | ー | Mild steel/Mild steel FCW | |
| Input power supply terminal | ー | Terminal block (M5 bolt fixing) | Terminal block (M6 bolt fixing) |
| Output terminal | ー | Copper plate terminal (with M8 bolt) | |
| External dimensions (width x depth x height) |
mm | 436 x 675 x 762 | 500 x 690 x 920 |
| Mass | kg | 148 | 220 |
● View the required power supply capacity and cable thickness data
