Full Digital CO2/MAG/MIG Welding Machine
GZ4 series
Overview
GZ4 Series(YD-350GZ4 / YD-500GZ4 / YD-500GZ4TAL)
GZ4 Series
* In addition to this product (welding power source), a wire feeder, remote control unit, torch, and gas regulator are required for welding.
Key functions
-
Continuous evolution of low spatter control
-
High-precision pulsed MAG welding
-
Intuitive operation
-
Easy-to-set welding conditions
-
Output of various data to support quality control and frontline management
Issues
Significantly reducing spatter

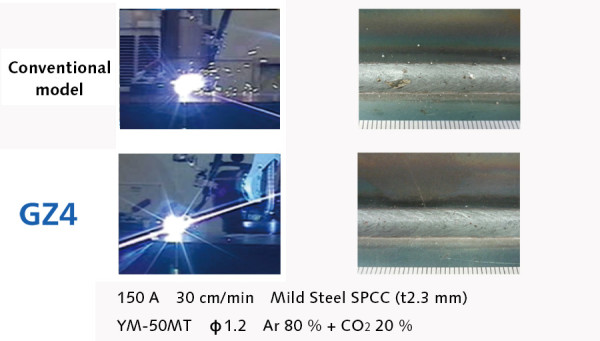

Equipped with voltage feedback control. This series significantly reduces spatter generated during MTS-CO2 welding and SP-MAG welding.
Improving productivity
Equipped with HD-Pulse functions.
The HD-Pulse functions suppress undercut during high-speed welding while maintaining the quality of low spatter welding.
Strengths and Features
Low-spatter welding achieved by the MTS-CO2 welding method

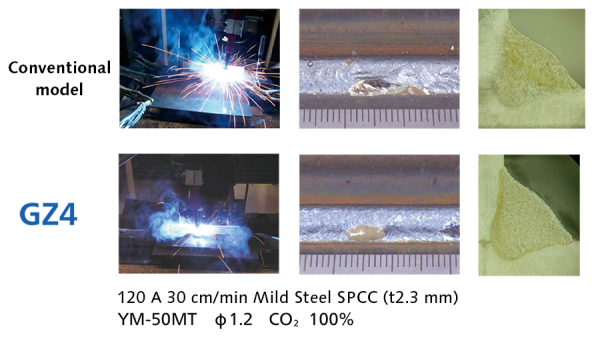

This method suppresses the vibration of the molten pool when the reignition of the arc takes place after the short circuit is opened. In addition, it suppresses micro short-circuits that occur during the arc period, thereby reducing the amount of spatter by up to 70 %.
MTS : Metal Transfer Stabilization Control
Low-spatter and high-quality achieved by the SP-MAG welding method
The current is superimposed immediately after short circuit opening to increase the melting rate of the wire tip, thereby making the next short-circuiting smoother and shortening the cycle. This reduces the amount of spatter by up to 85 %.
The HD-Pulse welding method achieves reduced heat input and low spatter welding

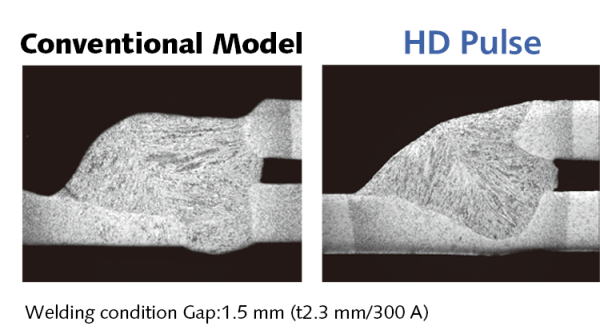

HD-Pulse welding can achieve a shorter arc length and narrower molten pool compared to conventional pulse MAG welding, thereby achieving higher-speed welding. Furthermore, undercut is suppressed and gap tolerance is improved. It is ideal for high-current high-speed welding of medium thickness plates.

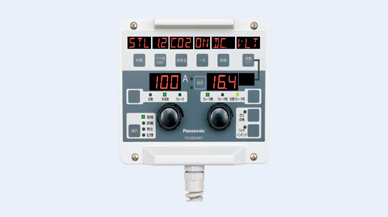

Easy-to-understand display for intuitive operation
Users can adjust all welding-related settings at their fingertips.
Option List
Wire feeder
Welding torch
Gas regulator
●YX-25AD1
For CO2 / MAG / MIG welding
●YX-503A
For aluminum MIG welding
Remote control unit
Connection cable
Please purchase separately as necessary.
Specifications
| Model number | YD-350GZ4 | YD-500GZ4 | |
|---|---|---|---|
| Rated input voltage*1 | V | 200 AC*1 (allowable fluctuation range：180 to 242) | |
| Number of phases, rated frequency | ー | 3-phase, 50 / 60 Hz | |
| Rated input | kVA | 17.7 | 28.8 |
| Rated input | kW | 16.0 | 27.5 |
| Maximum open circuit voltage | V | 78 DC | 82 DC |
| Rated duty cycle (10-minute cycle) | % | 60 | 100 |
| Output current adjustment range | A | 30 to 350 DC | Without pulse: 30 to 500 DC With pulse: 30 to 400 DC |
| Output voltage adjustment range | V | 12 to 36 DC | 12 to 45 DC |
| Control method | ー | IGBT inverter type | |
| Memory functions | ー | 50-channel storage and reproduction | |
| Applicable welding process | ー | CO2 / MAG / MIG | CO2 / MAG / MIG / Pulsed MAG / Pulsed MIG |
| Waveform control function | ー | Digital setting | |
| Applicable shielding gas | ー | CO2(100 %), MAG (Ar : 80 %, CO2 : 20 %), Stainless steel MIG (Ar : 98 %, O2 : 2 %) | |
| Applicable wire diameter | mm | 0.8 / 0.9 / 1.0 / 1.2 | 1.2 / 1.4 / 1.6 |
| Applicable wire materials | ー | Mild steel / Mild steel FCW / Stainless steel / Stainless steel FCW | |
| Pre-flow time | s (seconds) | 0.0 to 10.0 (adjustable in 0.1 increments) | |
| Post-flow time | s (seconds) | 0.0 to 10.0 (adjustable in 0.1 increments) | |
| Arc spot time | s (seconds) | 0.3 to 10.0 (adjustable in 0.1 increments) | |
| Input power supply terminal | ー | Terminal block (M5 bolt fixing) | |
| Output terminal | ー | Steel plate terminal (with M8 bolt) | |
| External dimensions (width x depth x height)*2 | mm | 380 × 550 × 640 | 378 × 543 × 896 |
| Mass | kg | 52 | 77 |
*1: Supports nominal voltages of 200/220 V.
*2: The depth dimension does not include the input power supply terminal cover on the rear panel.
* Voltage detection wire (5 m) included.
