Full Digital CO2/MAG/MIG Welding Machine・Gouging Machine
YD-500GG3
Overview
YD-500GG3
Catalog coming soon
* In addition to this product (welding power source), a wire feeder, remote control unit, torch, and gas regulator are required for welding.
Key functions
-
Full digital control achieves high-quality welding
-
High-precision encoder feedback control
-
Simple and easy-to-use operation panel
-
Equipped with DC gouging functions
Issues
Functionality
DC gouging functions have been added to the basic welding functions. One unit serves a dual purpose.
Compatibility
Mutual compatibility of ancillary devices has been achieved with the GR3 series. The wire feeder and torch can be used without any modifications.
Strengths and Features
Achieves high-quality welding with a smooth and stable arc start
This model enables a quick current rise when starting arc ignition, and a uniform wire tip shape through FTT control when completing welding, thereby achieving a consistently stable arc start. This model supports welding over a wide current range from a low current region to the rated current.
High-precision encoder feedback control
A motor equipped with an encoder performs high-precision wire feeding. The uniform wire feeding performance is maintained even when external factors occur, including changes in the power supply voltage and ambient temperature.
Easy-to-operate panel
A simple operation panel was adopted for the welding power source in conformity with use environments. Users can adjust all welding-related settings at their fingertips. The operation panel is bright and easy to see even in the welding frontlines and allows smooth settings in order from left to right.
Equipped with DC gouging functions

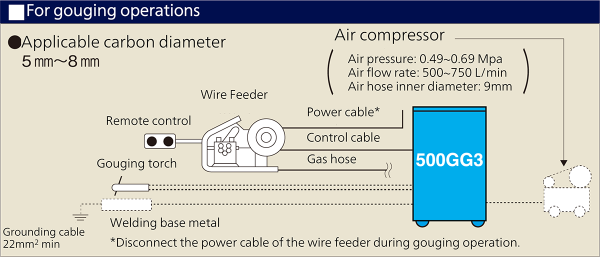

500GG can also support gouging work by replacing the torch.
* For gouging, a gouging torch and DC gouging carbon are separately required.
Option List
Wire feeder
Welding torch
Gouging torch
●YT-700N
* Please use DC gouging carbon (standard type).
Gas regulator
●YX-25AD1
For CO2 / MAG / MIG welding
Remote control unit
●YD-50GGR1
Cable length : 2 m
Connection cable
Please purchase separately as necessary.
Water-cooling option
Specifications
| Rated input voltage | V | 200 AC (allowable fluctuation range：180 to 242) |
|---|---|---|
| Number of phases | - | 3-phase |
| Rated frequency | Hz | 50 / 60 |
| Rated input | kVa | 28 |
| kW | 26.5 | |
| Maximum open circuit voltage | V | 77 DC*1 |
| Rated duty cycle (10-minute cycle) | % | 100 |
| Output current adjustment range | A | 60 to 500 DC*2 |
| Output voltage adjustment range | V | 14 to 45 DC |
| Control method | - | IGBT inverter type |
| Memory functions | - | 9-channel storage and reproduction |
| Waveform control function | - | Digital setting |
| Applicable welding process | - | CO₂ / MAG / MIG |
| Applicable shielding gas | - | CO₂：100 ％ CO₂ MAG : 80 % Ar and 20 % CO₂ Stainless steel MIG : 98 % Ar and 2 % O₂ |
| Applicable wire diameter | mm | 1.2 / 1.4 / 1.6 |
| Applicable wire materials | - | Mild steel, Mild steel FVW*3, Stainless steel, Stainless steel FCW*3 |
| Pre-flow time | s (seconds) | 0.0 to 5.0 (adjustable in 0.1 increments) |
| Post-flow time | s (seconds) | 0.0 to 5.0 (adjustable in 0.1 increments) |
| Arc spot time | s (seconds) | 0.3 to 10.0 (adjustable in 0.1 increments) |
| Input power supply terminal | - | With 2 m long cable (4 cores including a ground cable, M6 bolt fixing) |
| Output terminal | - | Copper plate terminal (with M8 bolt) |
| External dimensions (width x depth x height) | mm | 380 × 540 × 810 |
| Mass | kg | 68 |
*1: When welding mode is selected
*2: When gouging mode is selected: 150 to 500 A DC
*3: FCW = Flux cored wire
