Full Digital CO2/MAG/MIG Welding Machine
YD-350AZ4
Overview
YD-350AZ4
Catalog coming soon
* In addition to this product (welding power source), a wire feeder, remote control unit, torch, and gas regulator are required for welding.
* In addition to this product (welding power source), a wire feeder, remote control unit, torch, and gas regulator are required for welding.
Key functions
-
Full digital control achieves high-quality aluminum welding
-
Capable of complex control with simple operation
-
High-precision wire feeding
-
Enhanced mobility achieved by eliminating the remote control unit cable to the power source
Issues
Achieving multiple types of welding with one unit
A variety of arc characteristics are available as standard. Aluminum MIG welding can also be supported by replacing ancillary devices, such as a wire feeder and torch. Various welding operations can be performed with one unit.
Preventing burn through during thin plate welding

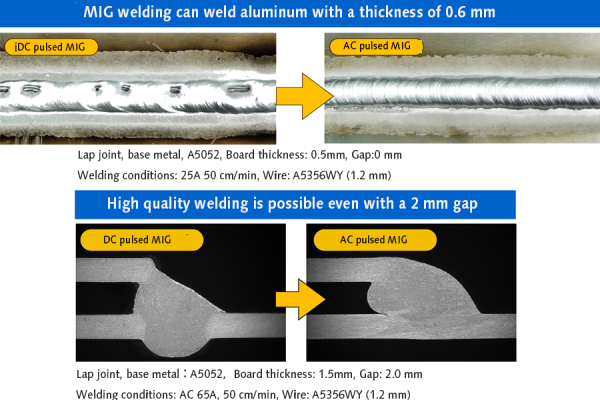

The AC pulse mode has been preinstalled as standard. This model demonstrates its effects for welding thin plates and base metal with a gap.
Completing all operations at users' fingertips
The operation system is integrated in the remote control unit, allowing users to complete all setting operations . There is no need for troublesome movement and operation when an extension cable is used.
Strengths and Features
Full digital control achieves high-quality aluminum welding
With the integration of the refined welding performance from the welding power source integrated robot TAWERS, this model demonstrates its stable welding performance for thin to medium thickness plates. MIG welding with AC pulse control can now achieve a finish similar to that through TIG welding.
Capable of complex control with simple operation

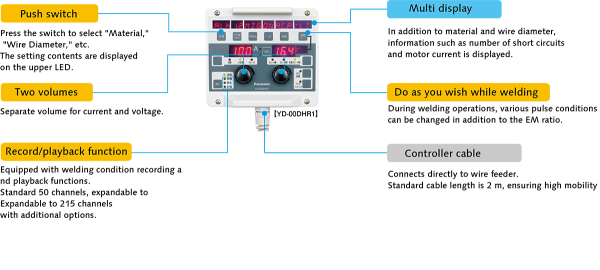

The arrangement of buttons has been meticulously designed with special attention, ensuring that users can effortlessly execute complex controls using the controller optimized for operability. The upper LEDs are dedicated to the display of important setting items (display items: materials, wire diameter, welding process, centralized control, etc.) to enhance visibility. Frequently-used switches and dials are collectively located in the lower part of the controller panel and give users a feeling similar to analog operations. Users can complete every operation required for welding at their fingertips.
High-precision encoder feedback control
A motor equipped with an encoder performs high-precision wire feeding. The uniform wire feeding performance is maintained even when external factors occur, including changes in the power supply voltage and ambient temperature.
Enhanced mobility achieved by eliminating the remote control unit cable to the power source

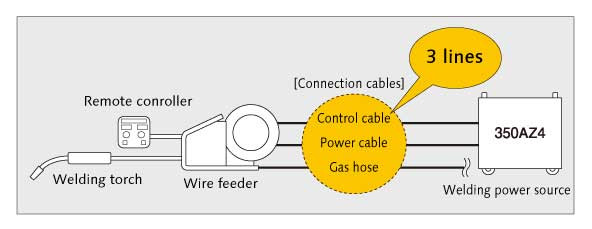

Reduced the number of cables for improving ease of maintenance. Since the remote control unit is connected to the wire feeder, the number of cables for connecting the welding power source and wire feeder was reduced to three (control cable, power cable, and gas hose).
Option List
Wire feeder
Welding torch
Gas regulator
●YX-503A
For aluminum MIG welding
●YX-25AD1
For CO2 / MAG / MIG welding
Remote control unit
Connection cable
Please purchase separately as necessary.
Water-cooling option
Specifications
| Rated input voltage | V | 200 AC*1 (allowable fluctuation range：180 to 220) |
|---|---|---|
| Number of phases | - | 3-phase |
| Rated frequency | Hz | 50 / 60 |
| Rated input | kVa | 21 |
| kW | 19.7 | |
| Maximum open circuit voltage | V | 78 DC |
| Rated duty cycle (10-minute cycle) | % | 60 |
| Output current adjustment range | A | 22 to 350 |
| Output voltage adjustment range | V | 12 to 36 |
| Control method | - | IGBT inverter type |
| Memory functions | - | 50-channel storage and reproduction |
| Waveform control function | - | Digital setting |
| Applicable welding process | - | CO₂ / MAG / MIG / Pulsed MAG / Pulsed MIG |
| Applicable shielding gas | - |
CO₂ : CO₂ 100 ％ |
| Applicable wire diameter | mm | 0.9 / 1.0 / 1.2 / 1.6*2 |
| Applicable wire materials | - | Mild steel, Mild steel FCW, Stainless steel, Stainless steel FCW, Soft aluminum, Hard aluminum |
| Pre-flow time | s (seconds) | 0.0 to 10.0 (adjustable in 0.1 increments) |
| Post-flow time | s (seconds) | 0.0 to 10.0 (adjustable in 0.1 increments) |
| Arc spot time | s (seconds) | 0.3 to 10.0 (adjustable in 0.1 increments) |
| Input power supply terminal | - | Terminal block (M5 bolt fixing) |
| Output terminal | - | Copper plate terminal (with M8 bolt) |
| External dimensions | mm | Width 380 x Depth 550 x Height 820*3 |
| Mass | kg | 71 |
*1: Supports nominal voltages of 200/220 V.
*2: Diameters of mild steel and stainless steel wires: 0.9 / 1.0 / 1.2; Diameters of aluminum wires: 1.0 / 1.2 / 1.6
*3: The depth dimension does not include the input power supply terminal cover on the rear panel.
