Inverter Air Plasma Cutting Machine
YP-130PF1
Overview
YP-130PF1
Key functions
-
High-efficiency cutting in combination with automatic machines
-
User-friendly design suitable for site environments
Issues
Cutting thick plates
This water-cooled type machine cuts plates up to 70 mm in thickness with high efficiency.
Connection to a robot
High-precision cutting can be performed in combination with Panasonic robots (TS/TM/TL-GIII series).
Strengths and Features

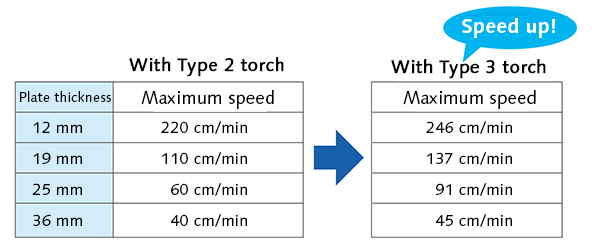

High-efficiency cutting in combination with automatic machines
YP-103PF1 is a water-cooled machine specifically designed for cutting that operates with an external compressor. The continuous cutting performance (100% duty cycle) is also ideal for long workpieces. Unlike gas cutting, this model features a cutting speed approximately two to four times faster (depending on the plate thickness), and capabilities to also cut metals other than mild steel.

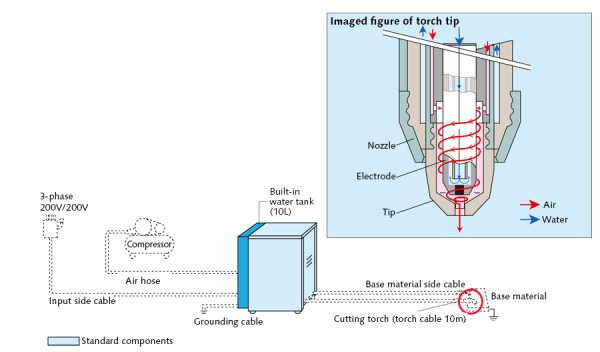

User-friendly design in consideration of site environments
In addition to a built-in coolant tank (10 L) and air regulator, this model is equipped with a torch monitor that informs users when to replace the electrode. It is compatible with both input voltages of 200 V and 220 V.
Specifications
| Model number | YP-130PF1*1 | |
|---|---|---|
| Rated input voltage (allowable fluctuation range) |
V | 200 / 220 Selectable using a switch on the rear 200 V: (180 to 220) 220 V: (198 to 242) |
| Number of phases, rated frequency | ー | 3-phase, 50/60 Hz |
| Rated input | ー | 3-phase |
| kVA | 32 | |
| kW | 29.2 | |
| Rated output | A | 130 |
| Rated duty cycle | % | 100 |
| Control method | ー | Inverter control |
| Air for cutting | ー | External supply type (built-in air unit) |
| External dimensions (width x depth x height) | mm | 376 × 896 × 764 |
| Mass | kg | 117 |
*1: Water-cooled type (Recommended coolant for cutting: Coolant G [model number CWU00183])
● View the required power supply capacity and cable thickness data
