Support for Downsizing of Chips Using 0603 Flow Soldering Process

Proposals by Problems and Solutions

Do you face any of these problems?

  • Application of adhesive for temporary fixing of 0603 components is difficult
  • When the insertion process is performed later, there is a risk of temporarily fixed chips coming off owing to stress on the PCB at the time of clinching insertion components with leads
  • Visual inspection and reworking of 0603 components are difficult

Panasonic solution realizes flow soldering for 0603 chips

Support for Downsizing of Chips Using 0603 Flow Soldering Process

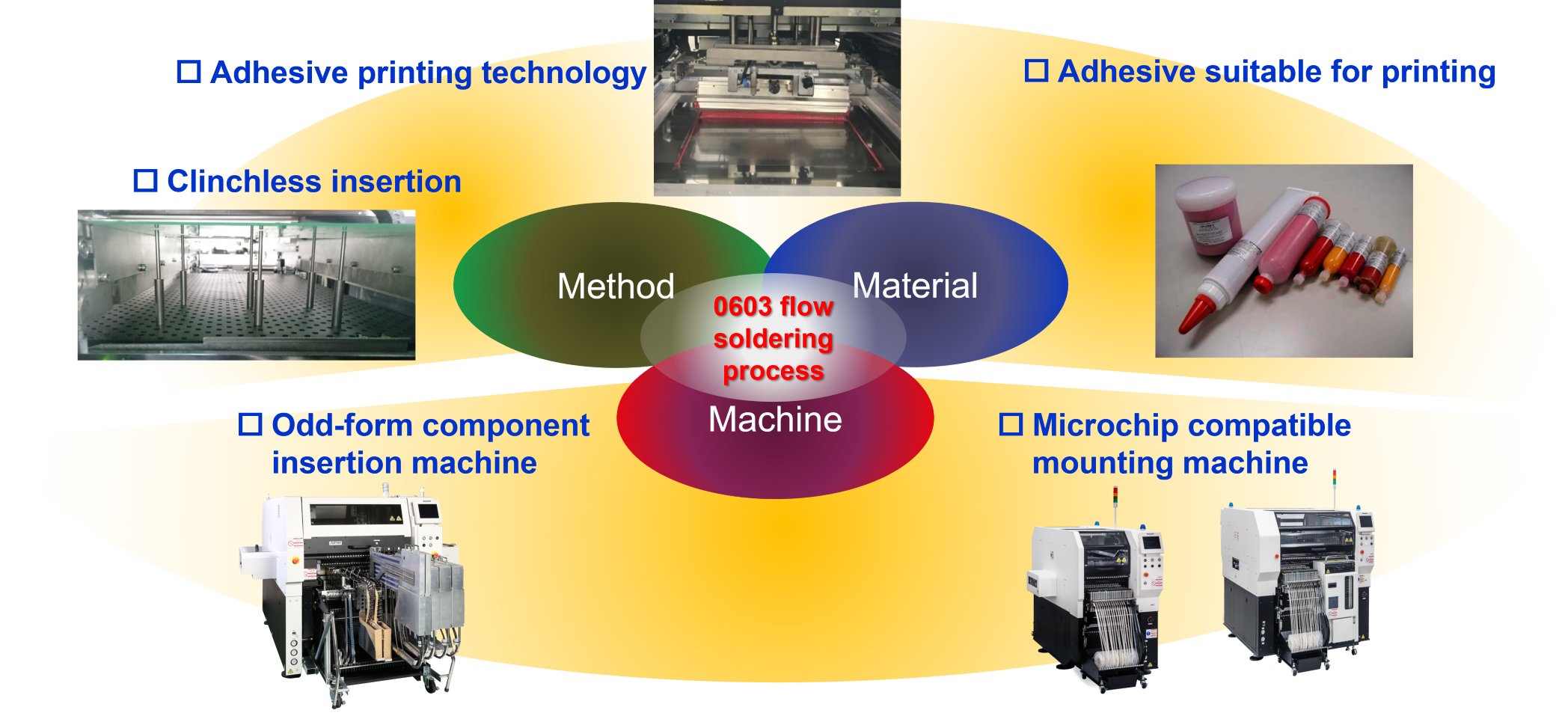

▲Panasonic’s 0603 flow soldering process


Modular Placement Machine VM101

High-performance heads compatible with NPM X series provide standard support from 0402 to large-size odd-form components.
Small investment and compact body can support downsizing of existing lines.

Screen Printer SPG2

With printing of adhesive in the printing method proposed by Panasonic, dots of adhesive can be applied for 0603 components, for which adhesive application cannot be achieved using the dispensing method.
As the takt of the printing method does not depend on the number of application points, both high productivity and stable quality can be attained.

Odd-form Component Insertion Machine NPM-VF

NPM-VF can insert radial and axial components and odd-formed components using a single machine.
Thus, it can achieve space saving, reduction of man-hours required for manual insertion and reduction of inventory of work in process.
