Ultrahigh Accurate 3-D Profilometer UA3P Series

Ultrahigh Accurate 3-D Profilometer UA3P Series

Ultrahigh Accurate 3-D Profilometer UA3P Series

"It is impossible to manufacture parts without making measurements" - The UA3P series supports nanometer-accuracy manufacturing by making precise measurements of various fine shapes.

UA3P can measure aspheric lenses, free curved surface mirrors, and molds for processing them with a maximum accuracy of 0.01 μm. These lenses and mirrors are indispensable for digital home appliances such as smartphones, DSCs, DVDs, and Blu-ray devices, home security, optical communication, automotive HUDs, etc. UA3P allows easy operations to achieve rapid processing feedback.

Features and Benefits of the “Ultrahigh Accurate 3-D Profilometer UA3P Series”

Measurement range of the Ultrahigh Accurate 3-D Profilometer UA3P Series

Measurement accuracy and application fields of various types of profilometers

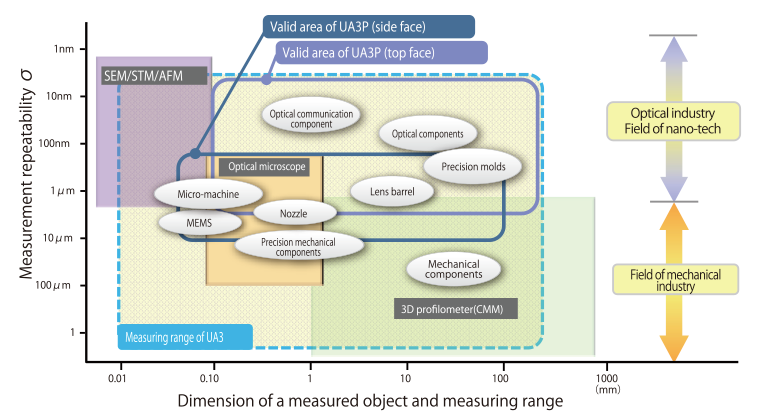

Measurement accuracy and applicable field of each profilometer

Offering a full profilometer series lineup ranging from an ultra-high precision measurement of ±0.10 μm at a 70° tilt angle to the measurement of large parts with a 500 mm square area

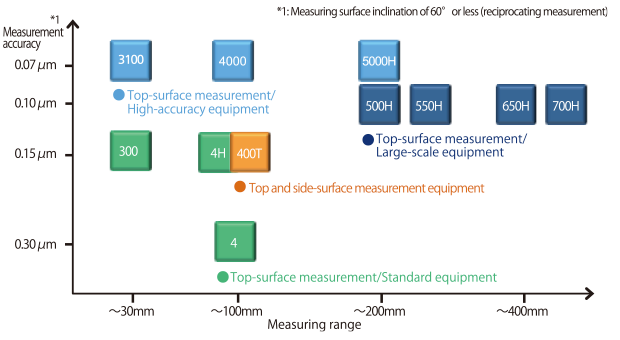

Measurement area and accuracy by model


Measurement area and accuracy by model

A model that only allows side-surface measurement (UA3P-L) is also available.


Measured objects


Lenses for mobile devices Lens barrels DSLR lenses
fθ lenses X-ray telescope mirrors Molds for lenses
Camera lenses Molds for toric lenses Stepper lenses

Technology for realizing ultra-high precision measurements

Coordinate measurement technology


Coordinate measurement technology

The profilometer’s coordinate system is configured with three reference flat surfaces (mirrors) independent of the stages. The length of an object in each X, Y, and Z axis is measured to a resolution of 0.3 nm with the laser interference method using a He-Ne frequency-stabilized laser as a light source. This suppresses the influence of squareness and straightness of the stages to achieve high-precision measurement.

  • Measurement error due to coordinate axes
    0.05 µm max. (up to 100 mm)
    0.3 µm max. (up to 500 mm)
Coordinate measurement technology

Top surface measuring probe/AFP

High-precision scanning and measurement of a measured object is feasible due to the use of ultra-low measuring forces.
The stylus is held by a micro-air slider, and the focus laser detects the movement of the stylus. The position of the AFP is tracked in line with the shape of the measured object to keep the measuring force constant.

  • Measuring force: 0.15 to 0.30 mN (15 to 30 mgf)
    * UA3P-3000 applies a force of 0.10 to 0.20 mN.
  • Stylus: A diamond stylus with a tip angle of 30º and a radius of 2 µm can be used.
Top surface measuring probe/AFP

Side-surface measuring probe/S-AFP

The inclination of a probe mirror detected with high-precision is fed back to the XY stages to enable a scanning measurement with a low contact force (0.3 mN).
This enables measurement without deforming resin products, such as a lens cylinder (barrel).

  • Measuring force: 0.3 mN (30 mgf)
  • Measurement accuracy: ±0.15 µm (when measuring 90º inclination)
  • Maximum measurement angle
    Horizontal measurement: 45º to 90º (angle relative to the horizontal surface)
    Vertical measurement: 80º to 90º (angle relative to the horizontal surface)
Side-surface measuring probe/S-AFP

Software

Software

Achieving high-speed, high-precision measurement with a simple operation.
UA3P can support any design information and correct an installation error in a measured object in three dimensions to achieve an accurate profile measurement.


Top-side surface evaluation technology

By synthesizing the top-surface and side-surface data of a measured object, decentering and inclination of the optical axis of a lens or a mold can be evaluated with reference to the side surface.

Top-side surface evaluation technology

Introduction video of the "Ultrahigh Accurate 3-D Profilometer UA3P Series"

Introduction video of the "Ultrahigh Accurate 3-D Profilometer UA3P Series"
