Full Digital Welding Machine
(Power Supply for Automatic Machines and Robots)
YD-700VH1
Overview
YD-700VH1
Catalog coming soon
* In addition to this product (welding power source), a wire feeder, remote control unit, torch, and gas regulator are required for welding.
Key functions
-
Pulsed MAG welding with a duty cycle of 100 % at an output of 700 A
-
High-quality MAG welding even at low output currents
-
High-speed wire feeding up to 35 m/min
-
Output of various data to support quality control and frontline management
-
Intuitive front panel
Issues
Improving productivity
High-current and high-quality welding reduces the number of passes to enhance the operation efficiency.
Wire feeding performance
Equipped with a new feeding motor, this product achieves high-speed wire feeding. In addition, the method to fix the feeding roller was changed to improve the ease of maintenance for the feeding system.
Ensuring sufficient penetration
High-current welding enables deep penetration. Improved arc stability achieves welding with low spatter and a flat bead appearance.
Strengths and Features

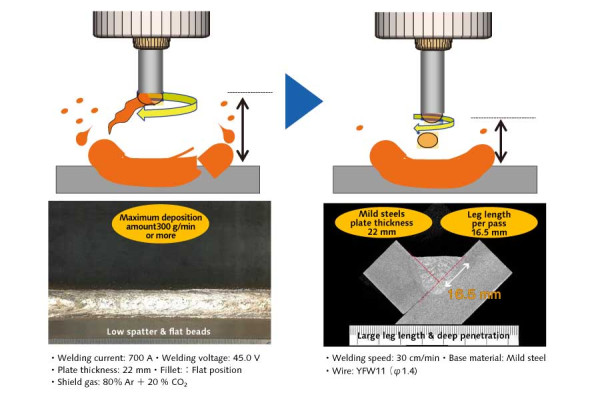

Pulsed MAG welding with a duty cycle of 100 % at an output of 700 A
A deposition rate of 300 g/min or more can be achieved with a single welding pass using one welding power source unit and a single torch. In addition, new pulse control suppresses unstable droplet transfer (rotating transfer) at high currents and achieves a stable arc.
High-quality MAG welding even at low output currents
Gaps and burn through at the ends are suppressed even at low output currents

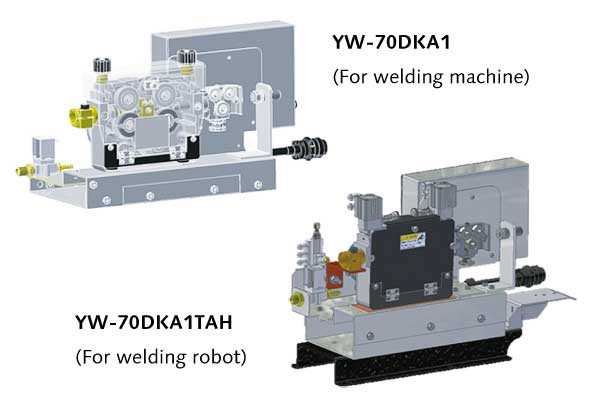

High-speed wire feeding up to 35 m/min
In order to achieve high-speed and high-precision wire feeding, the power capacity of the new brushless motor was increased and the control method was changed. This enables high-speed wire feeding and improved control accuracy. The change of the roller fixing method improves ease of maintenance.

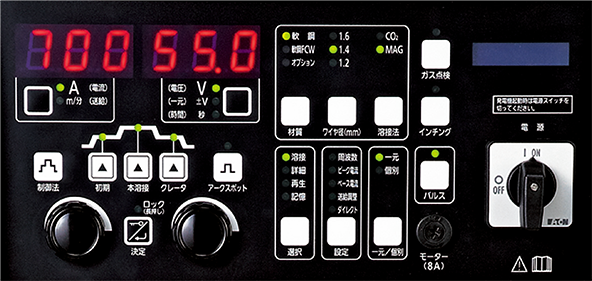

Easy-to-understand display for intuitive operation
The intuitive operation developed for the GR3 series has evolved further. The setting of welding conditions is completed by entering the required parameters in order from left to right on the display.
* When used as a robot power source, this product should be operated from the teach pendant.
Output management functions support welding quality control and frontline management
Various welding data including the motor current and arc time are output. It is also possible to issue notifications for cases where the preset upper or lower limit is exceeded by blinking the LCD display.
These functions are useful for achieving uniform welding quality and recognizing the timing of maintenance.
Option List
Wire feeder
Gas regulator
●YX-25AD1
For CO2 / MAG / MIG welding
●YX-1203CT1
For CO2 welding
Specifications
| Model number | YD-700VH1 | |
|---|---|---|
| Rated input voltage | V | 200 to 220 AC (allowable fluctuation range：180 to 242) |
| Number of phases, rated frequency | ー | 3-phase, 50 / 60 Hz (common) |
| Rated input | kVA | 47.1 |
| kW | 44 | |
| Maximum open circuit voltage | V | 108 DC |
| Rated output current | A | 700 |
| Rated output voltage | V | 55 |
| Rated duty cycle (10-minute cycle) | % | 100 |
| Output current adjustment range | A | 60 to 700 DC |
| Output voltage adjustment range | V | 14 to 55 DC |
| Control method | ー | IGBT inverter type |
| Memory functions | ー | 100-channel storage and reproduction |
| Applicable welding process | ー | CO2 / Pulse MAG / Pulse MIG |
| Sequence functions | ー | Main welding, Main welding-Crater, Initial welding-Main welding-Crater, Arc spot |
| Applicable wire diameter*1 | mm | 1.2 / 1.4 / 1.6 |
| Applicable wire materials*1 | ー | Mild steel solid, Mild steel FCW |
| Input power supply terminal | ー | Terminal block (for 3-phase, M6 bolt fixing) |
| Output terminal | ー | Copper plate terminal (with M8 bolt) |
| External dimensions (width x depth x height)*2 | mm | 380 x 820 x 988 |
| Mass | kg | 117 |
*1: Please check the catalog for the details of the applicable wire diameters and wire materials.
*2: The depth dimension does not include the input power supply terminal cover on the rear panel.
